* Allow 6-8 weeks for orders to be shipped. Superchargers are made to order.
Tuner System

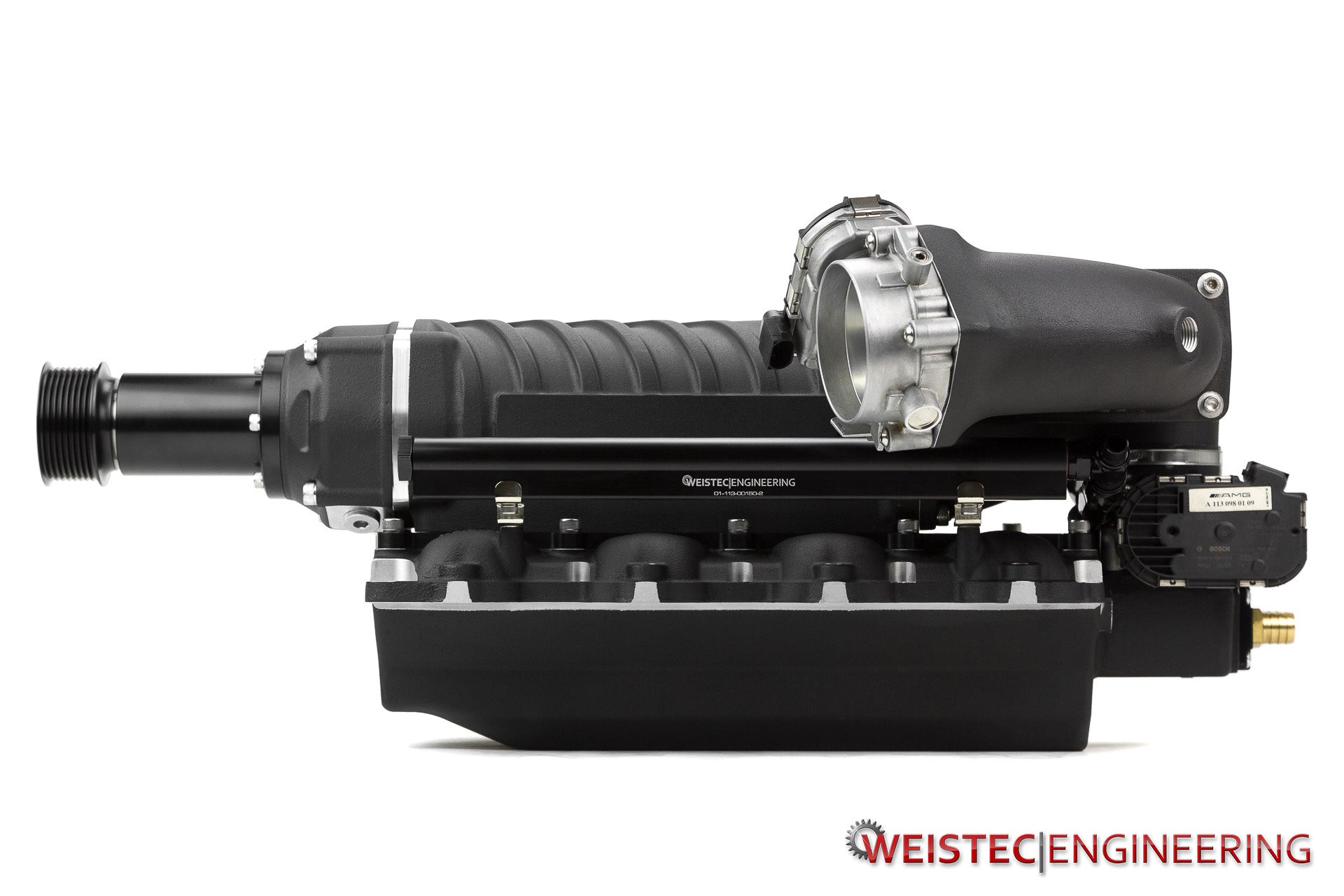

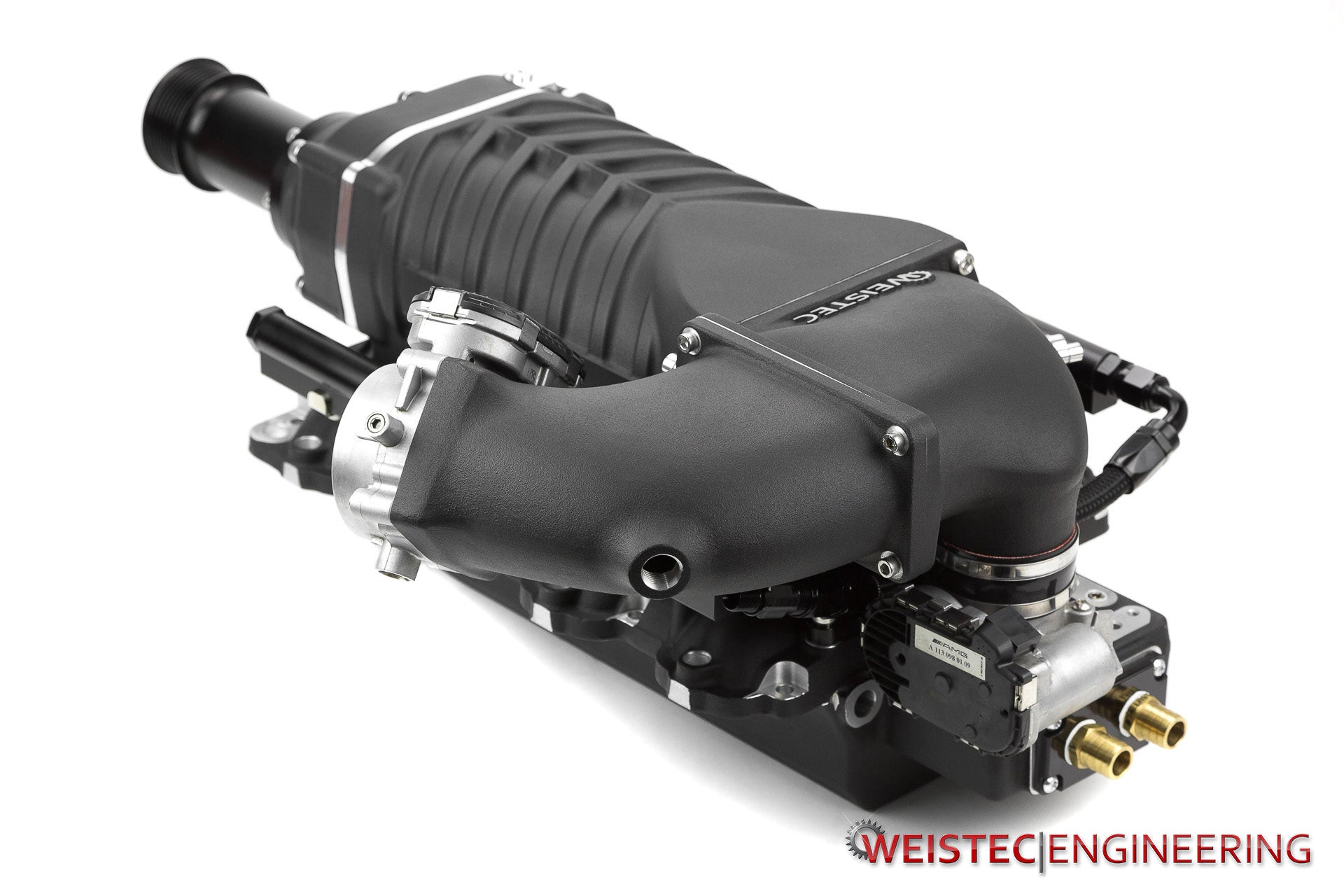

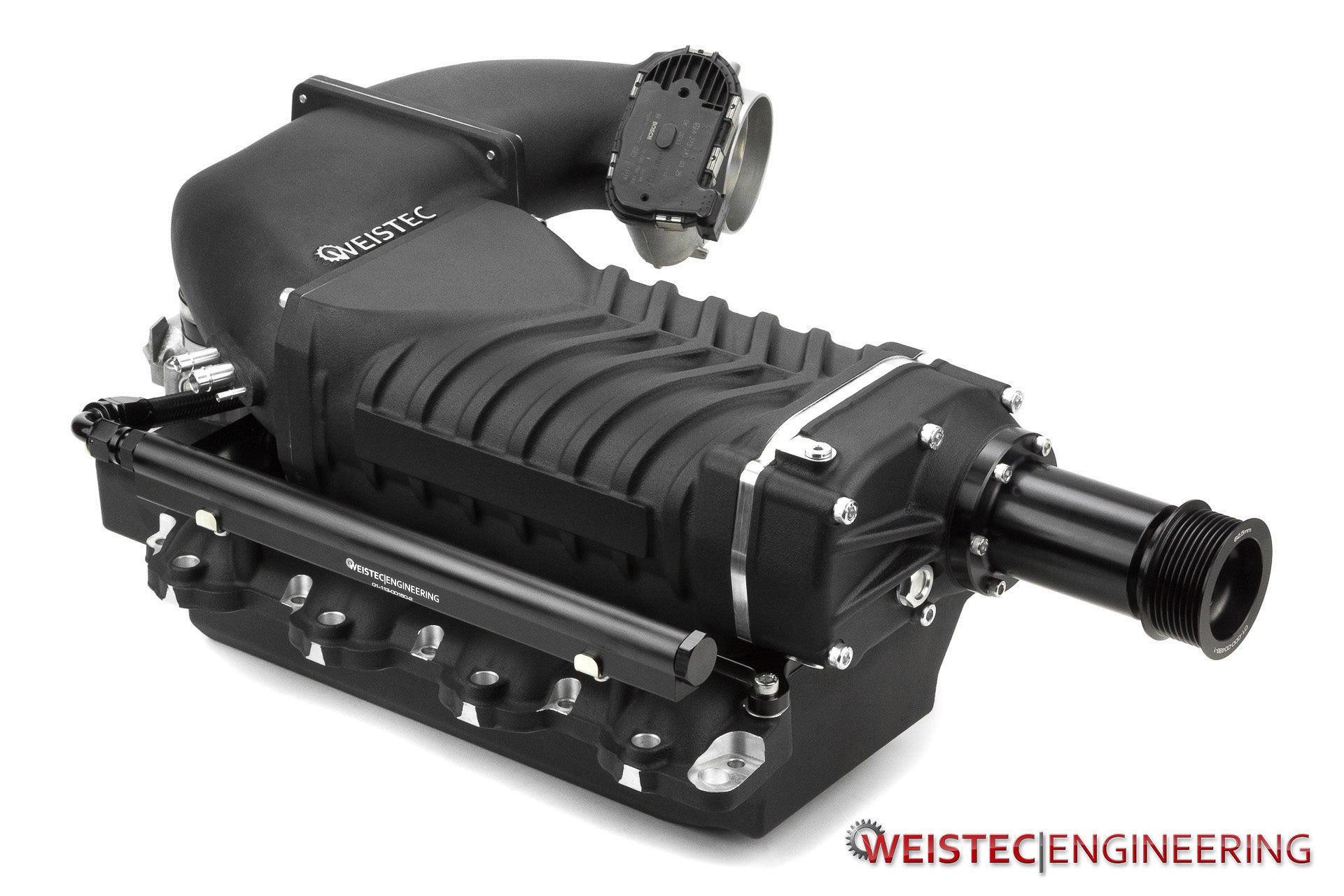

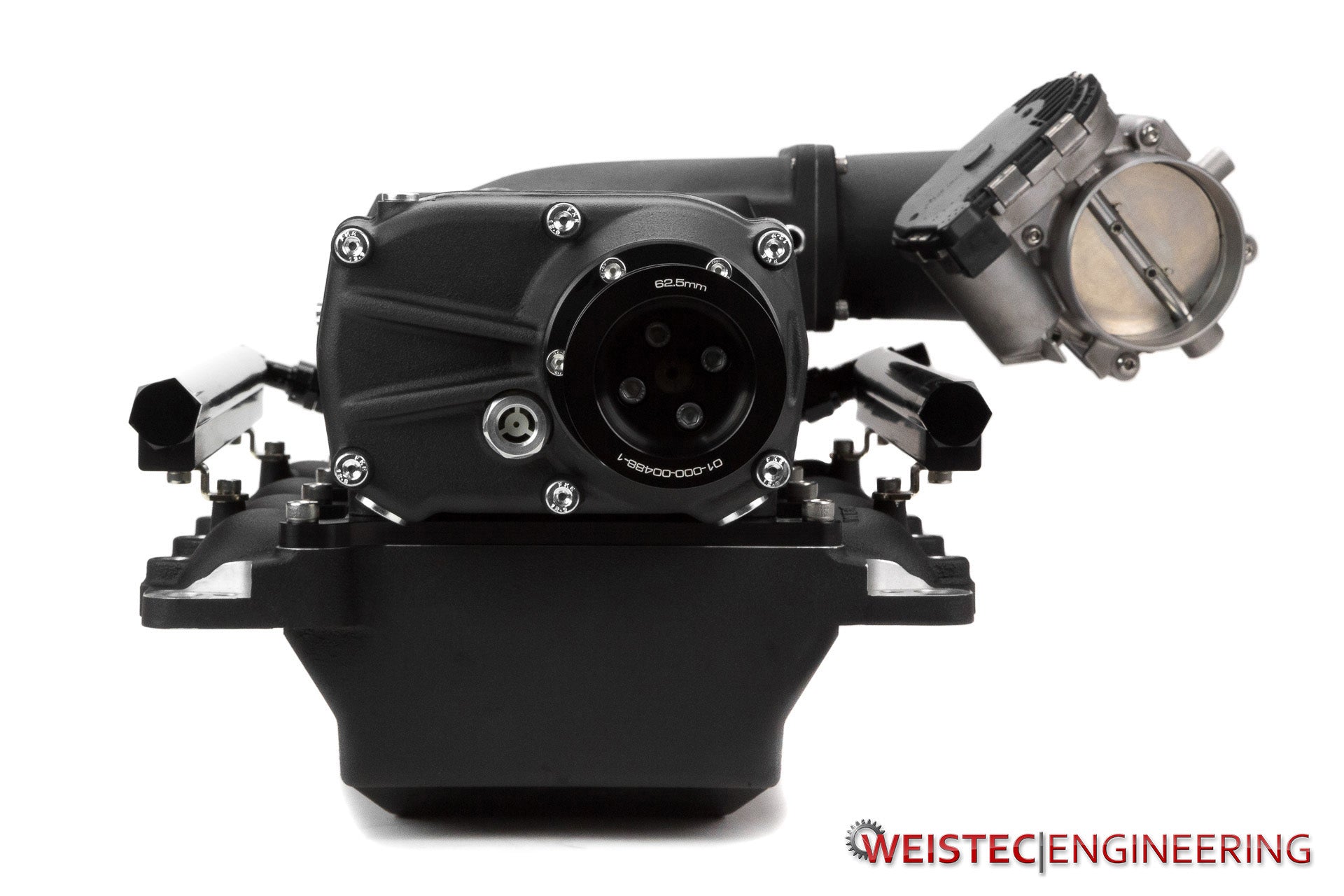

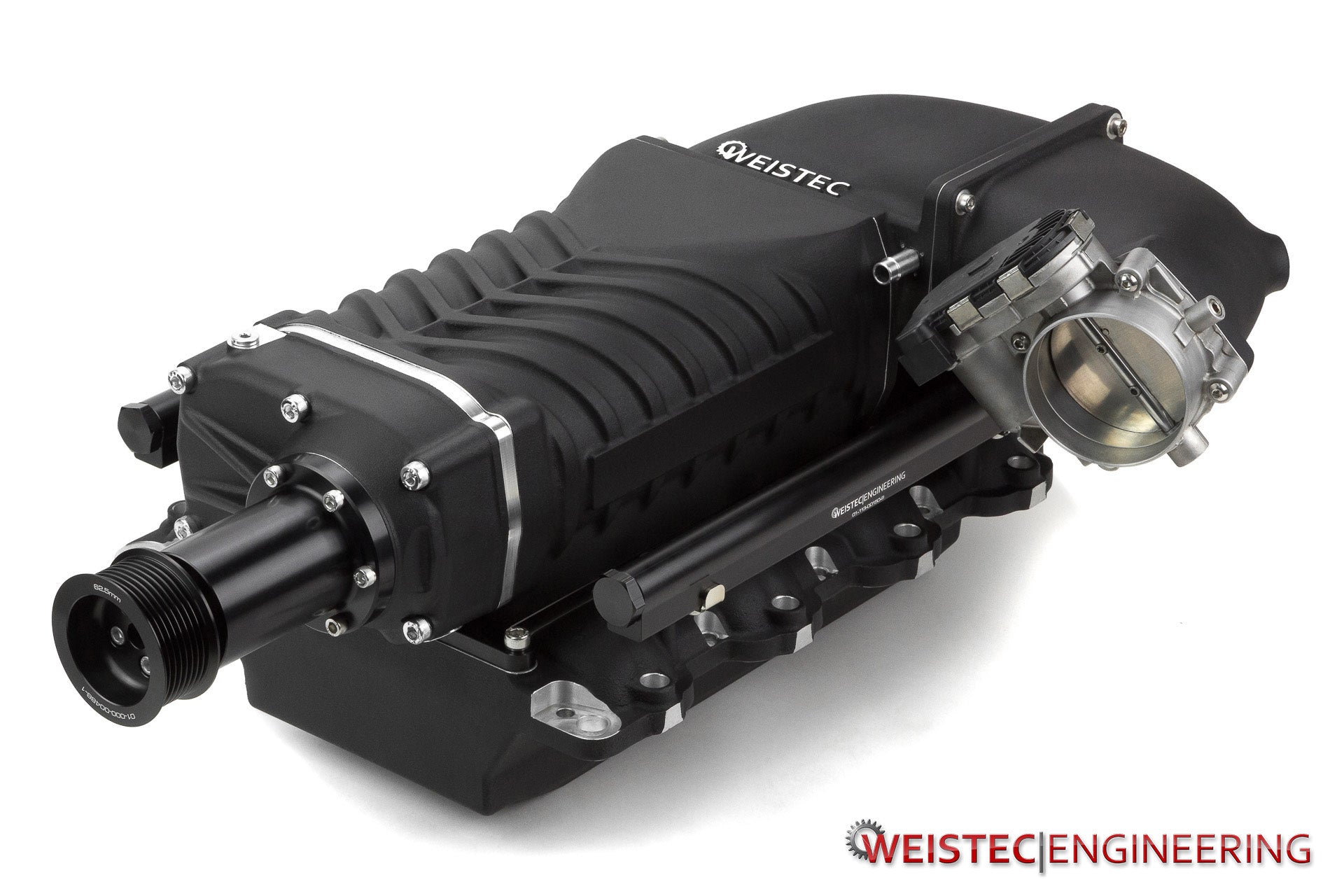

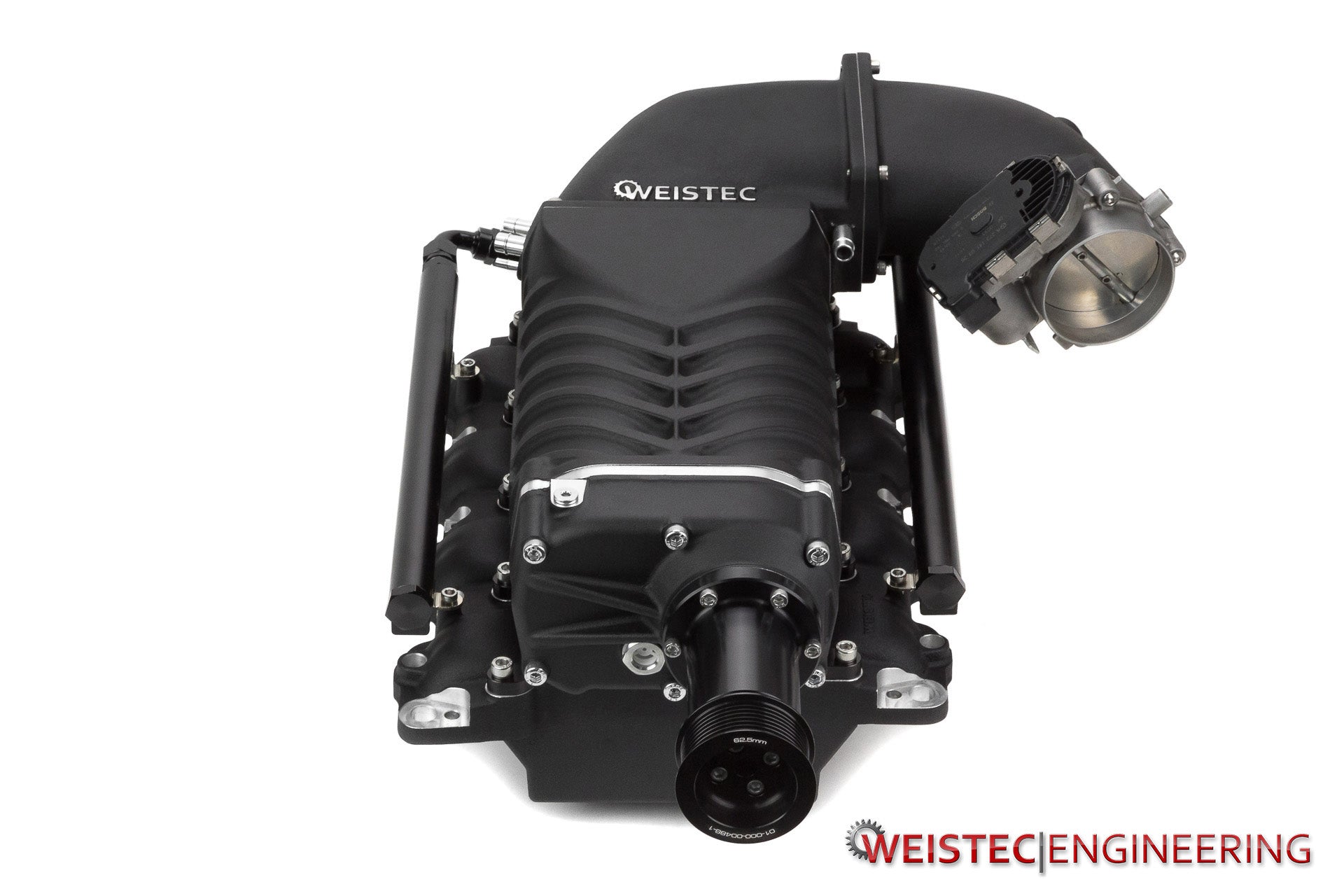

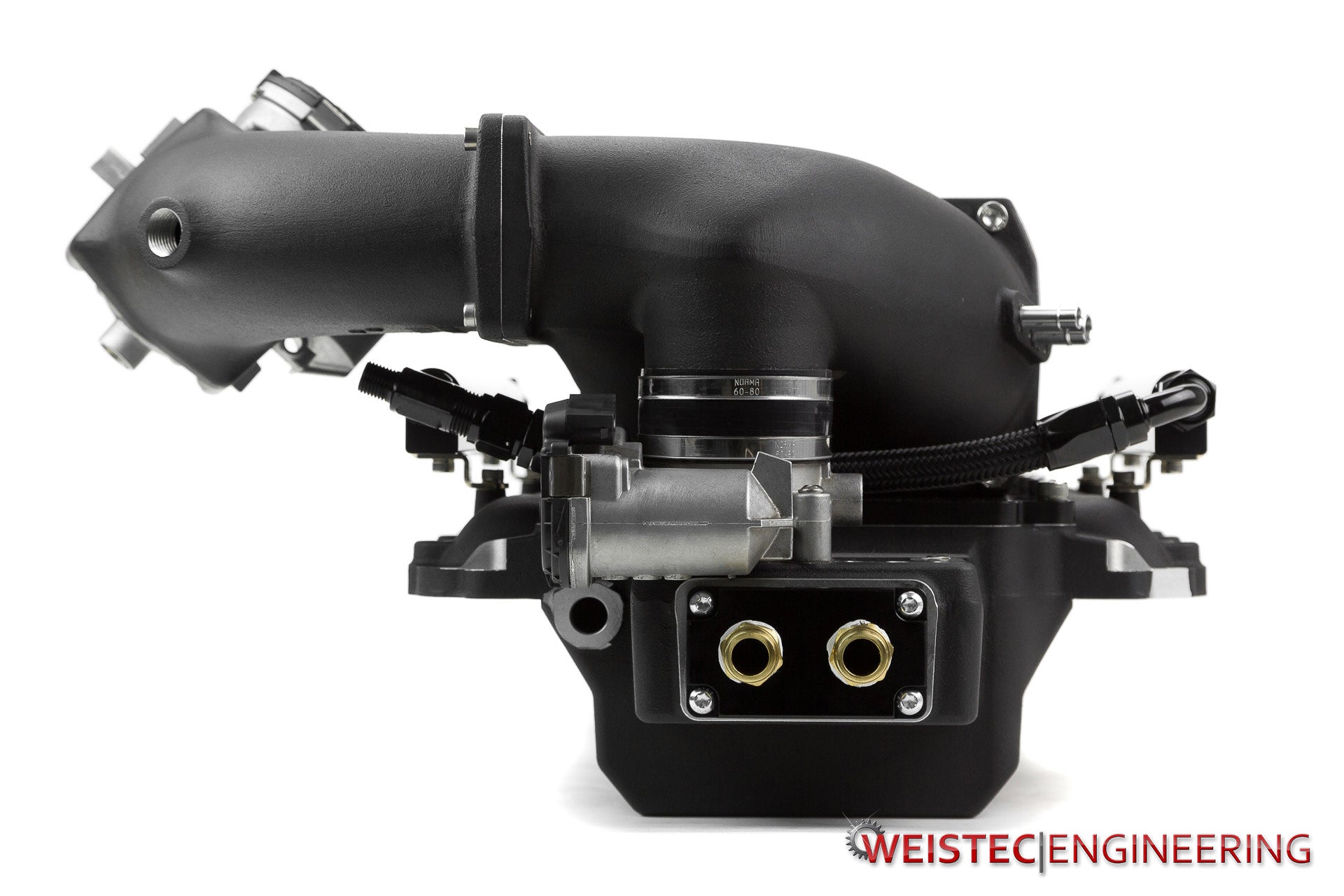

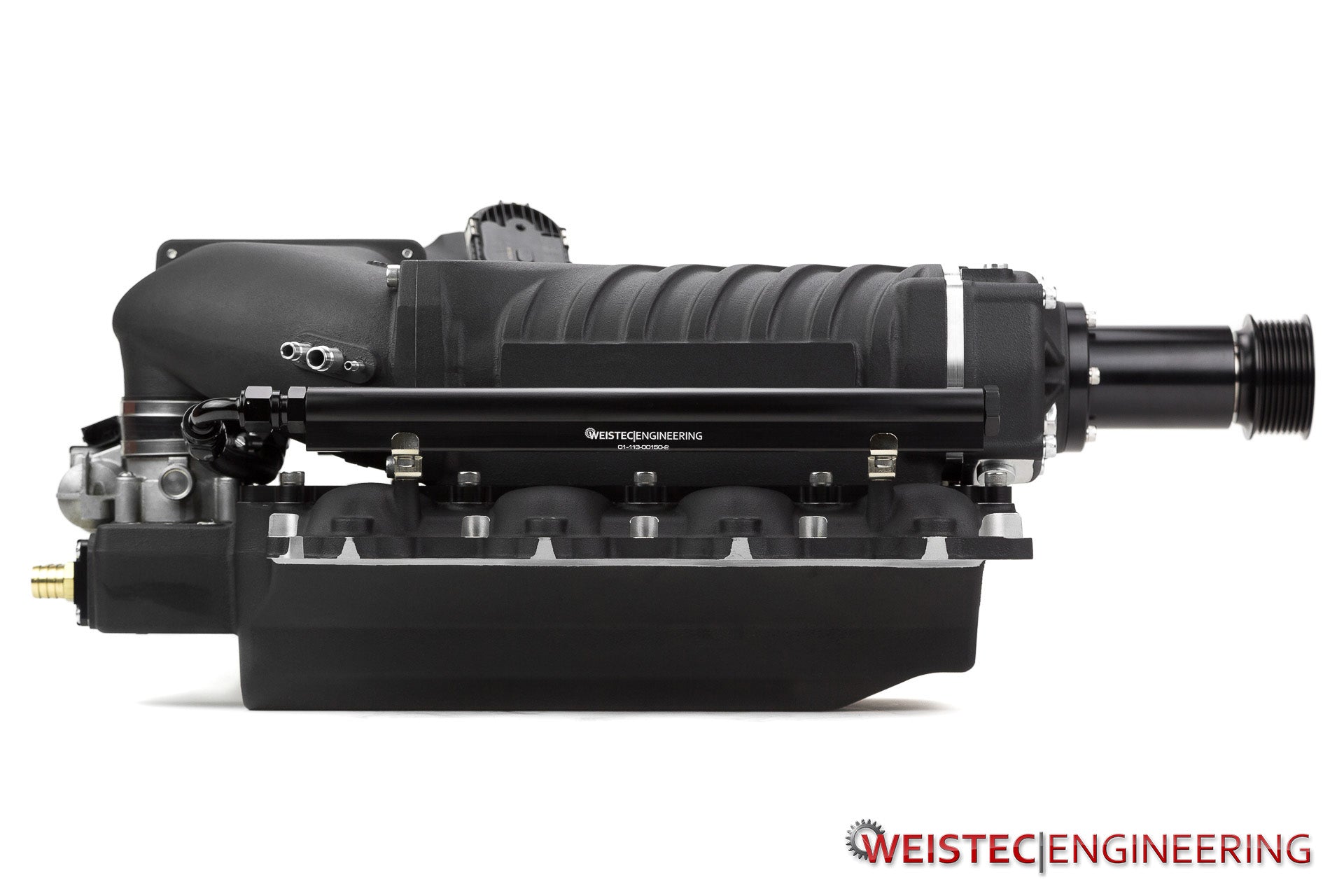

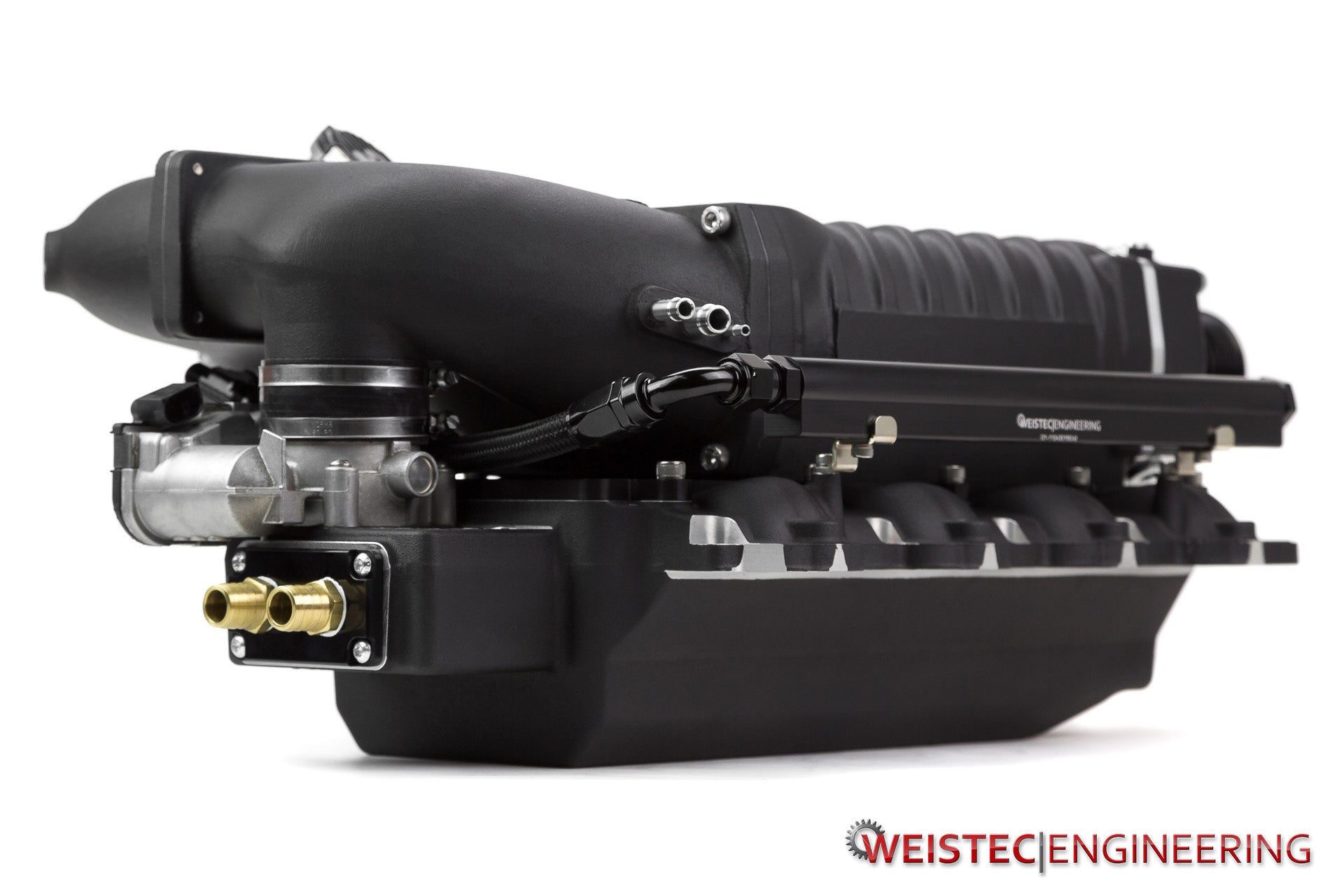

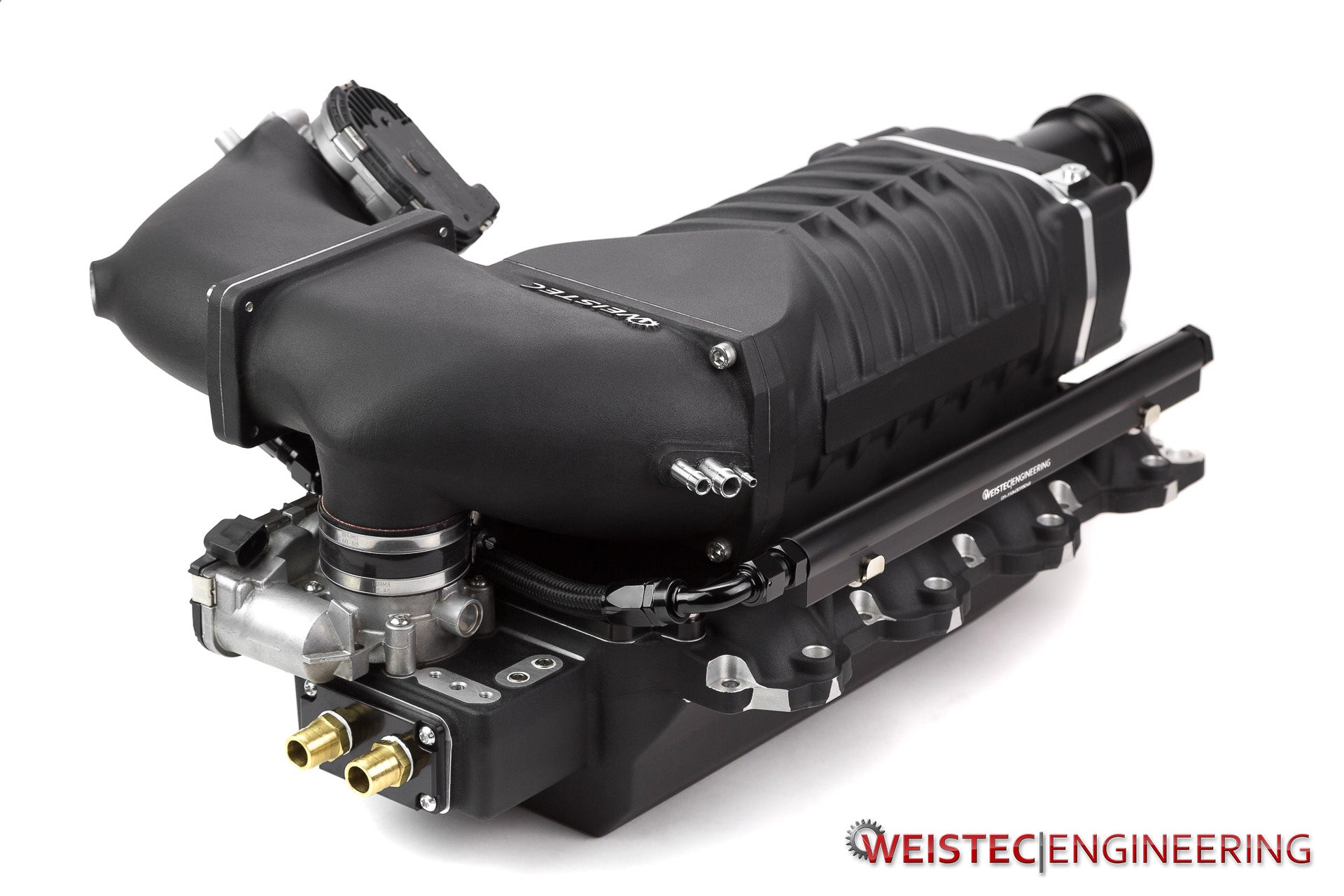

This system is perfect for those that are looking to customize the Weistec M113K Supercharger to their preferences. The
core hardware is the same as our M113K Supercharger System with one exception. The Tuner System does not include fuel
injectors. This gives the option of choosing which injectors to run based on your power goals and tuner's recommendation
or using upgraded injectors that are already installed. A 67.5mm supercharger pulley is included with the system to run

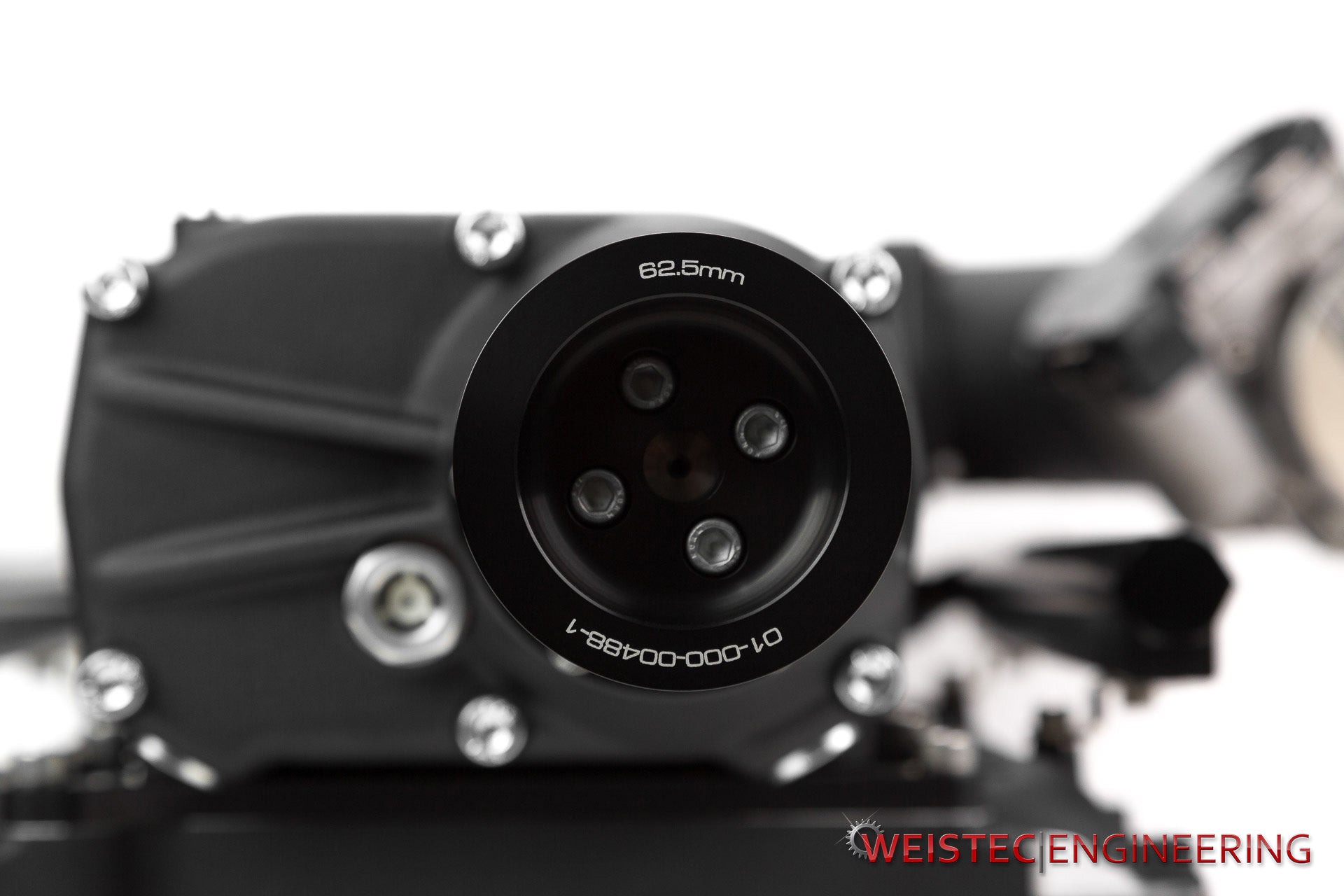

12-13psi on an otherwise stock car. Smaller supercharger pulleys are available for those that want to run higher boost.
After installation, an ECU calibration from your tuner of choice is required before driving the vehicle.
Weistec Customer
An E55 achieved 10.6 seconds at 134.4mph using our Supercharger Tuner System.
Fastest G55 in the World
Running Only the Weistec M113K Supercharger System and Exhaust.
Key Features:
-

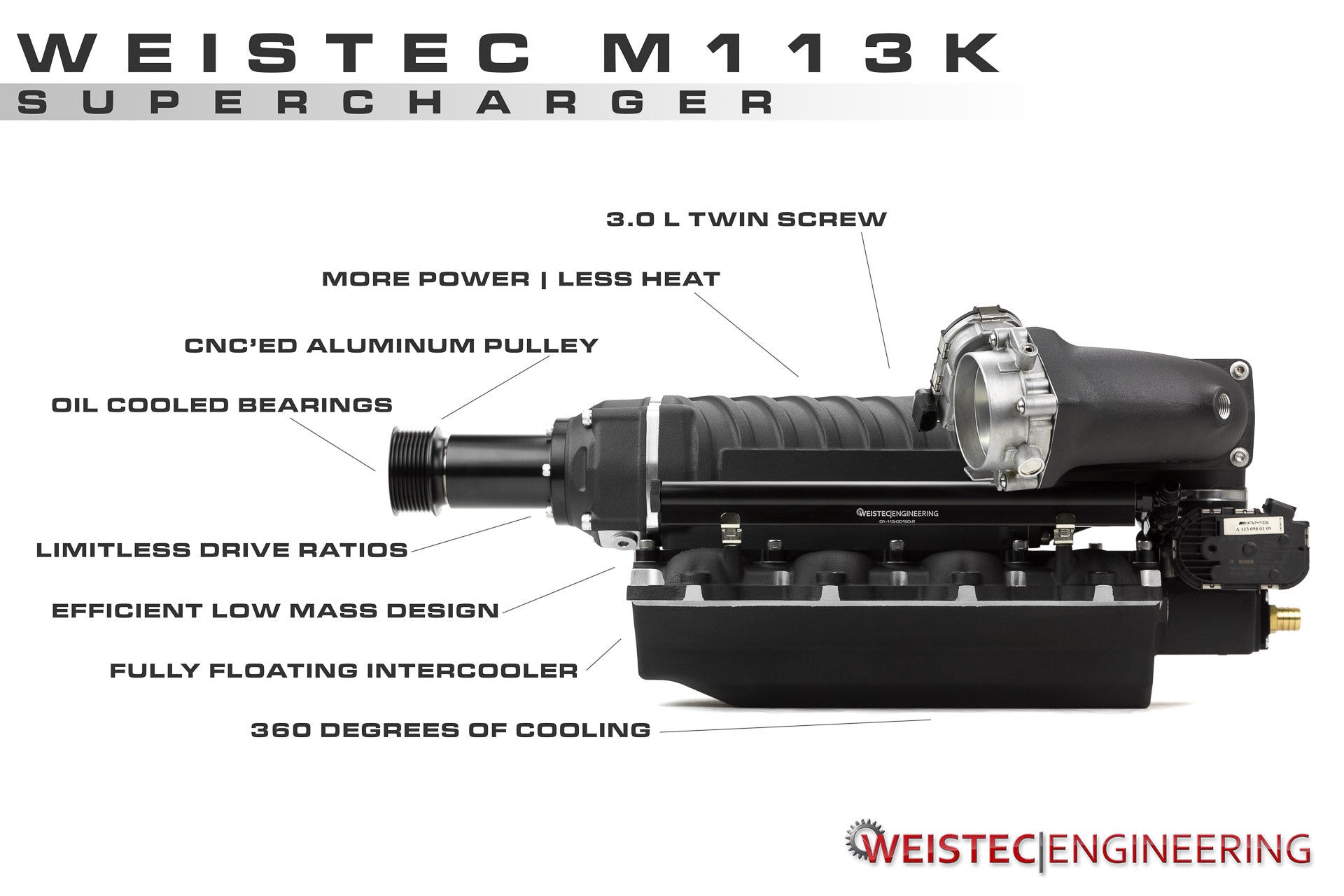

3.0L Twin-Screw Compressor Module (Why
Twin-Screw?)
-
1000hp Liquid to Air Intercooler Core
-
High Flow, Cast Aluminum, T6 Hardened Lower Manifold
-

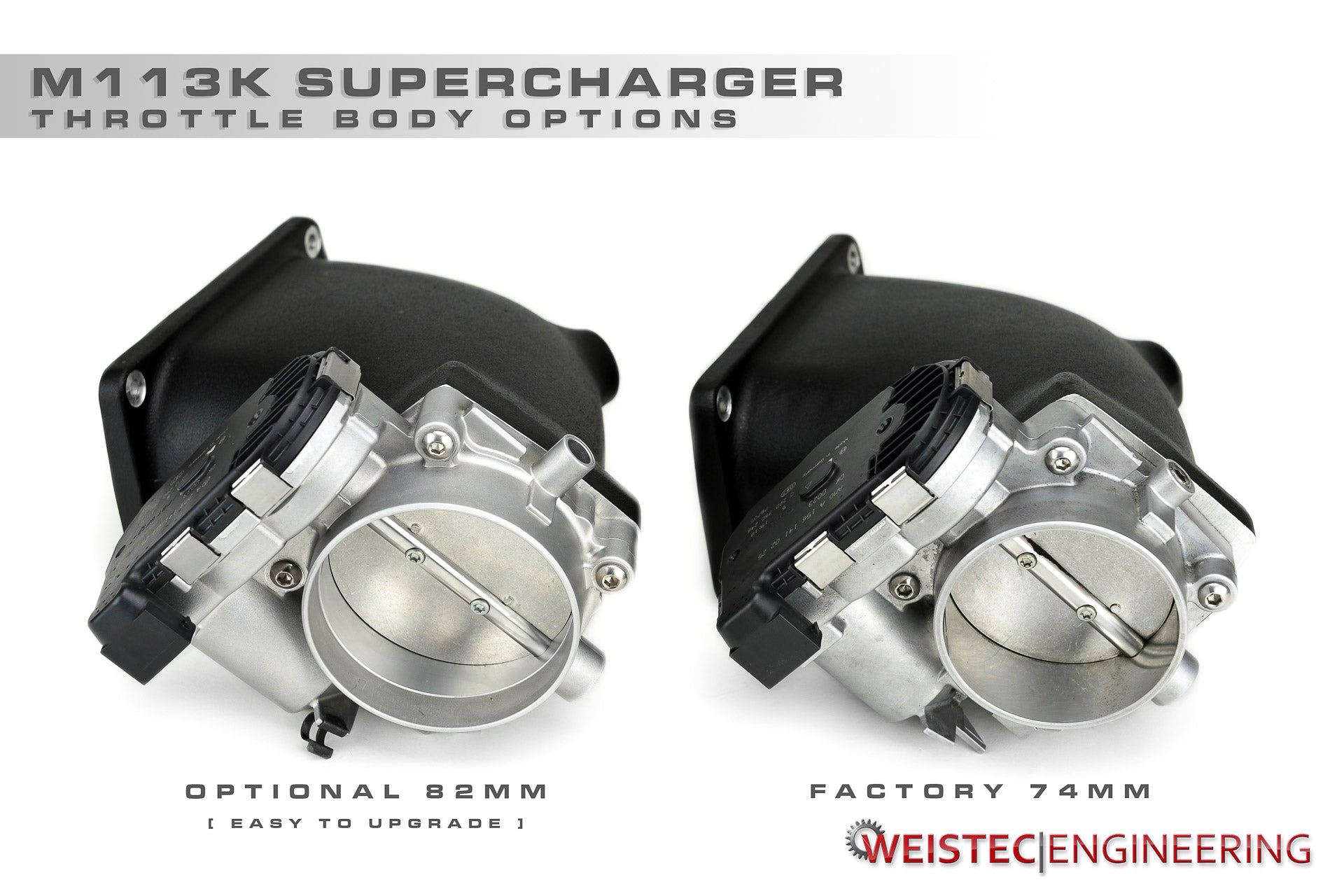

High Flow, Cast Aluminum, T6 Hardened Intake Elbow and Throttle Body Inlet
-
Maintains Factory Electronic Bypass Valve
-

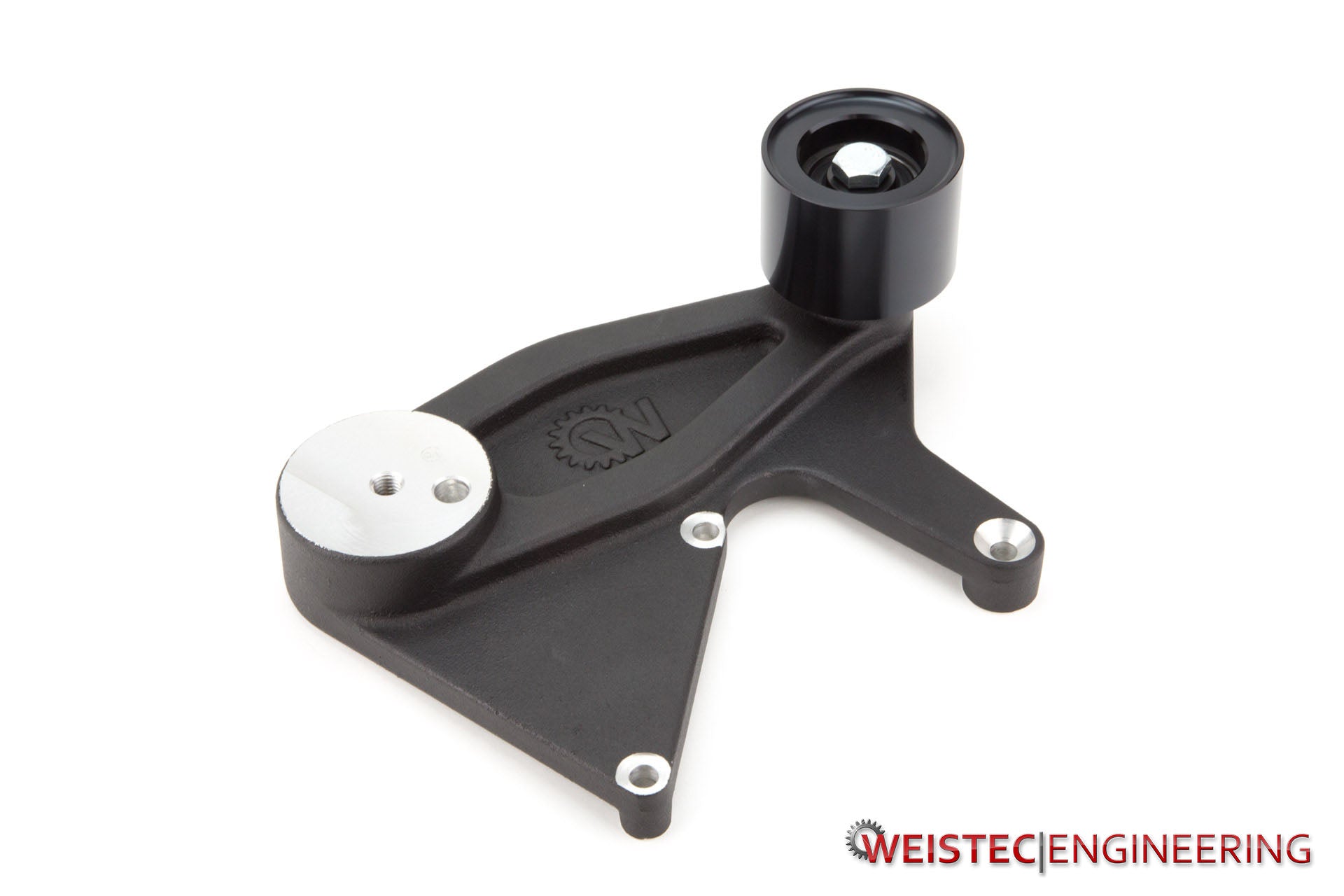

Hard Anodized Front Drive Bracket with Double Bearing, Belt Wrap Idler
-

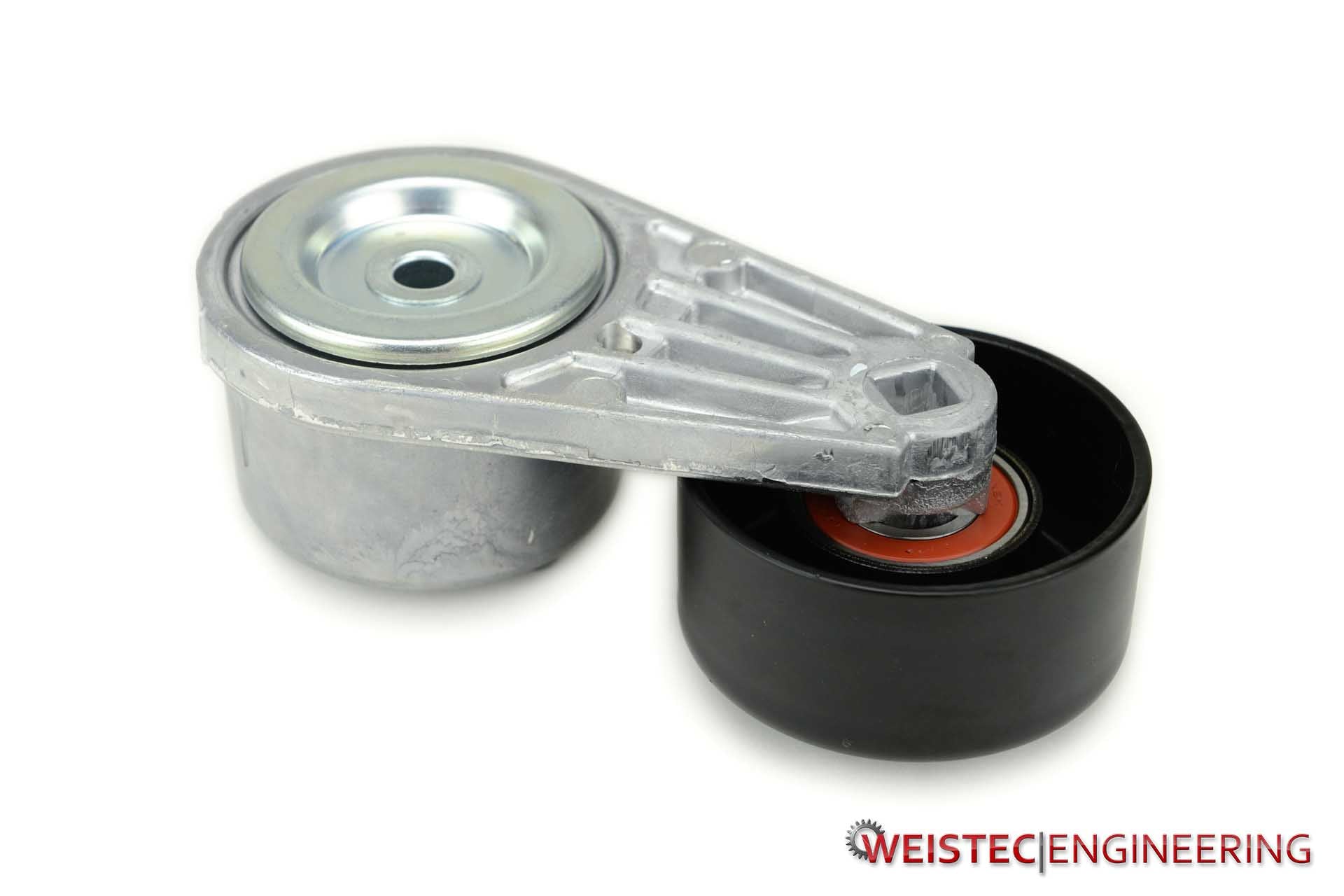

HD 8 Rib Belt Tensioner
-

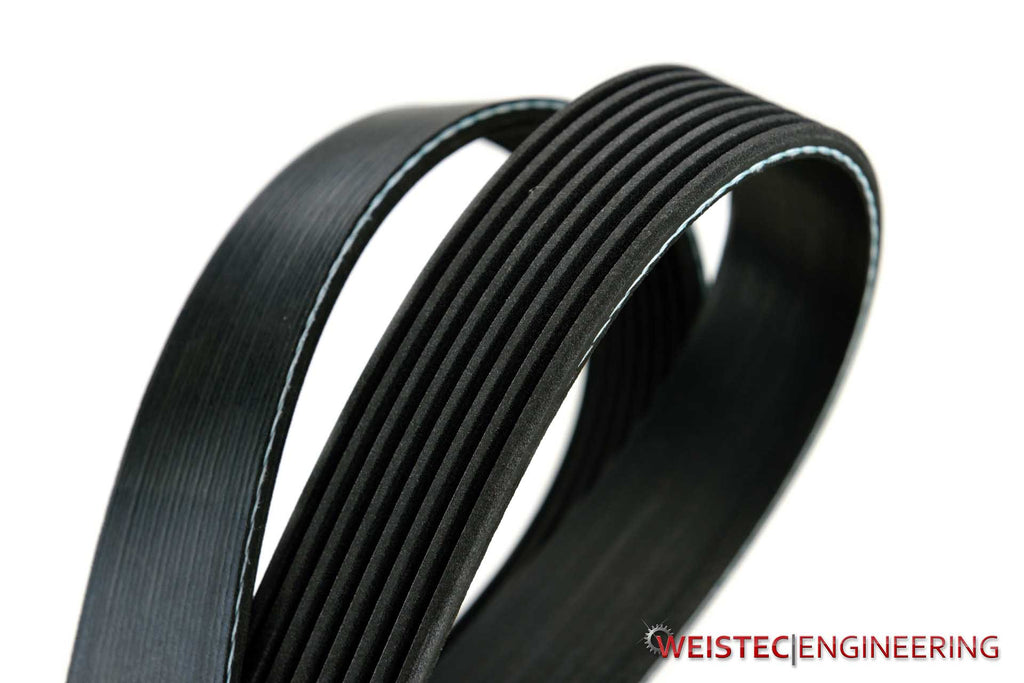

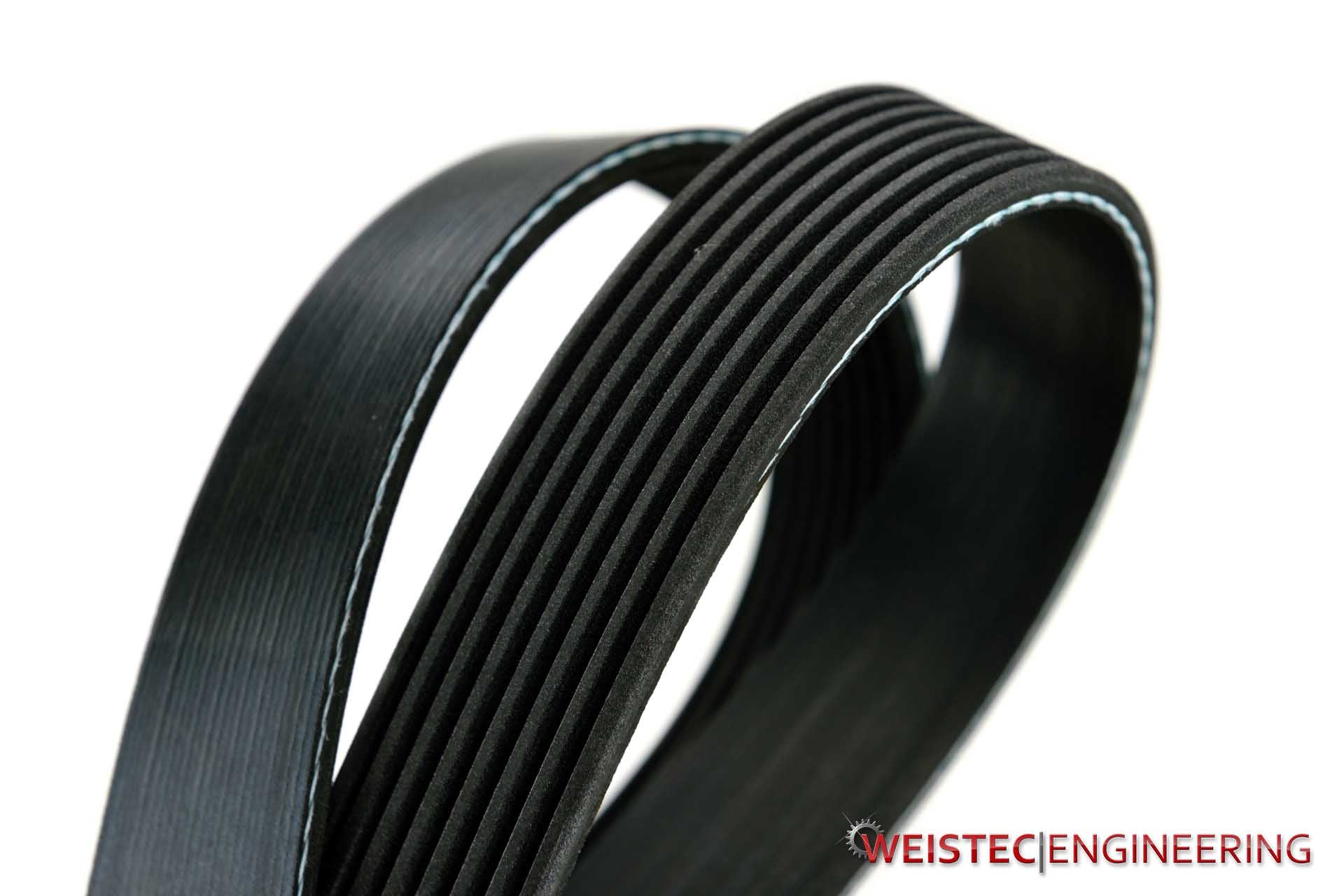

HD Supercharger Serpentine Drive Belt*
-

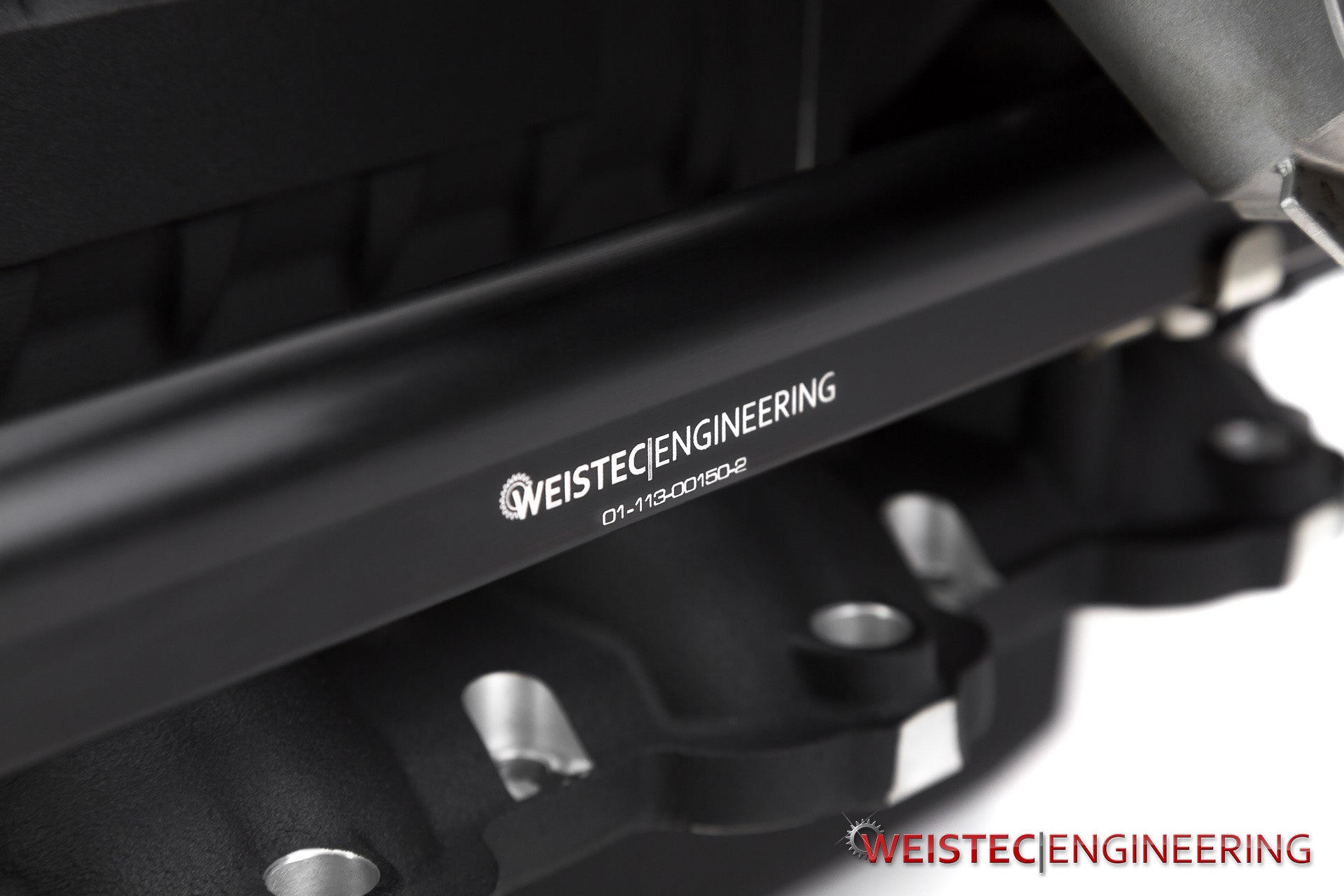

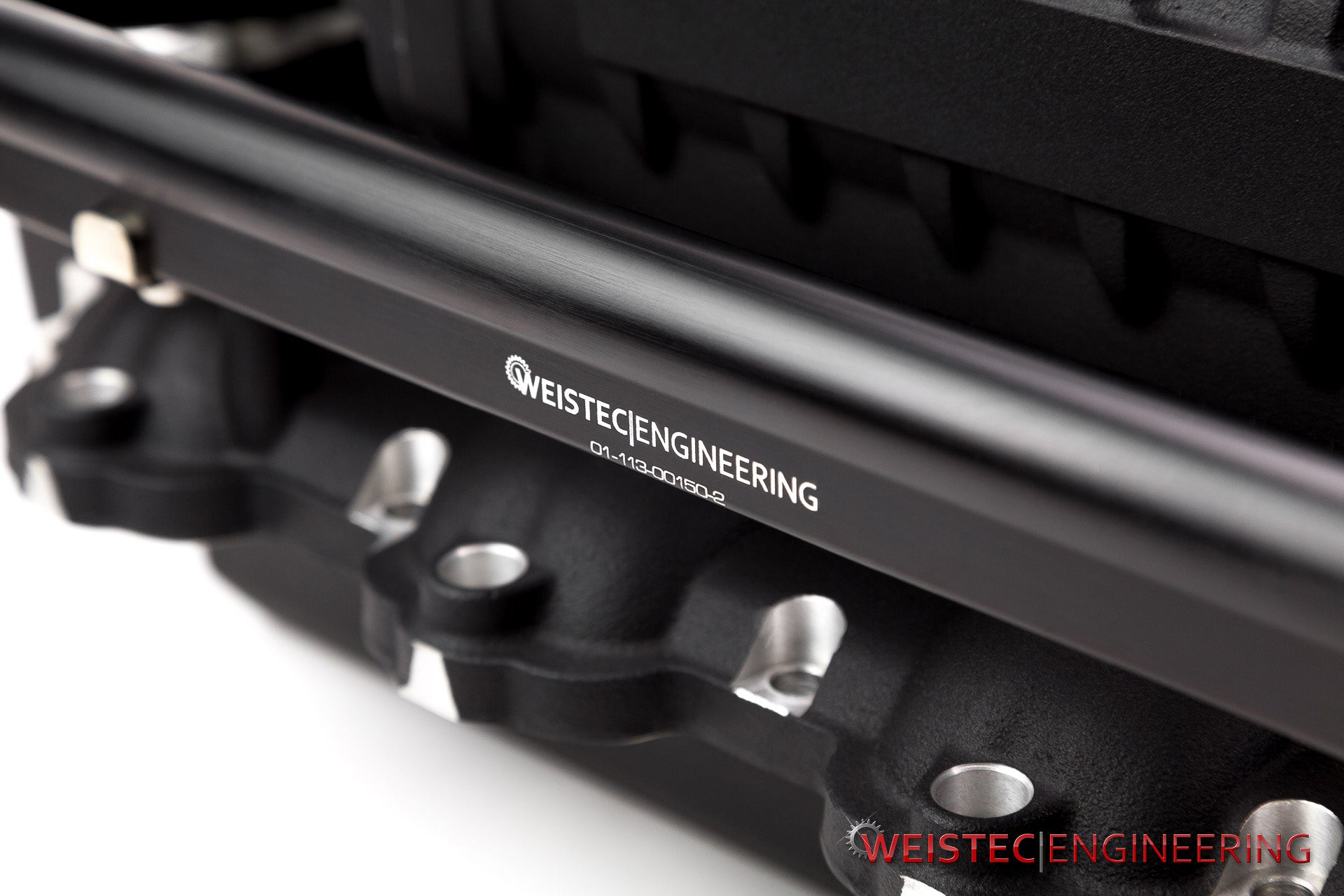

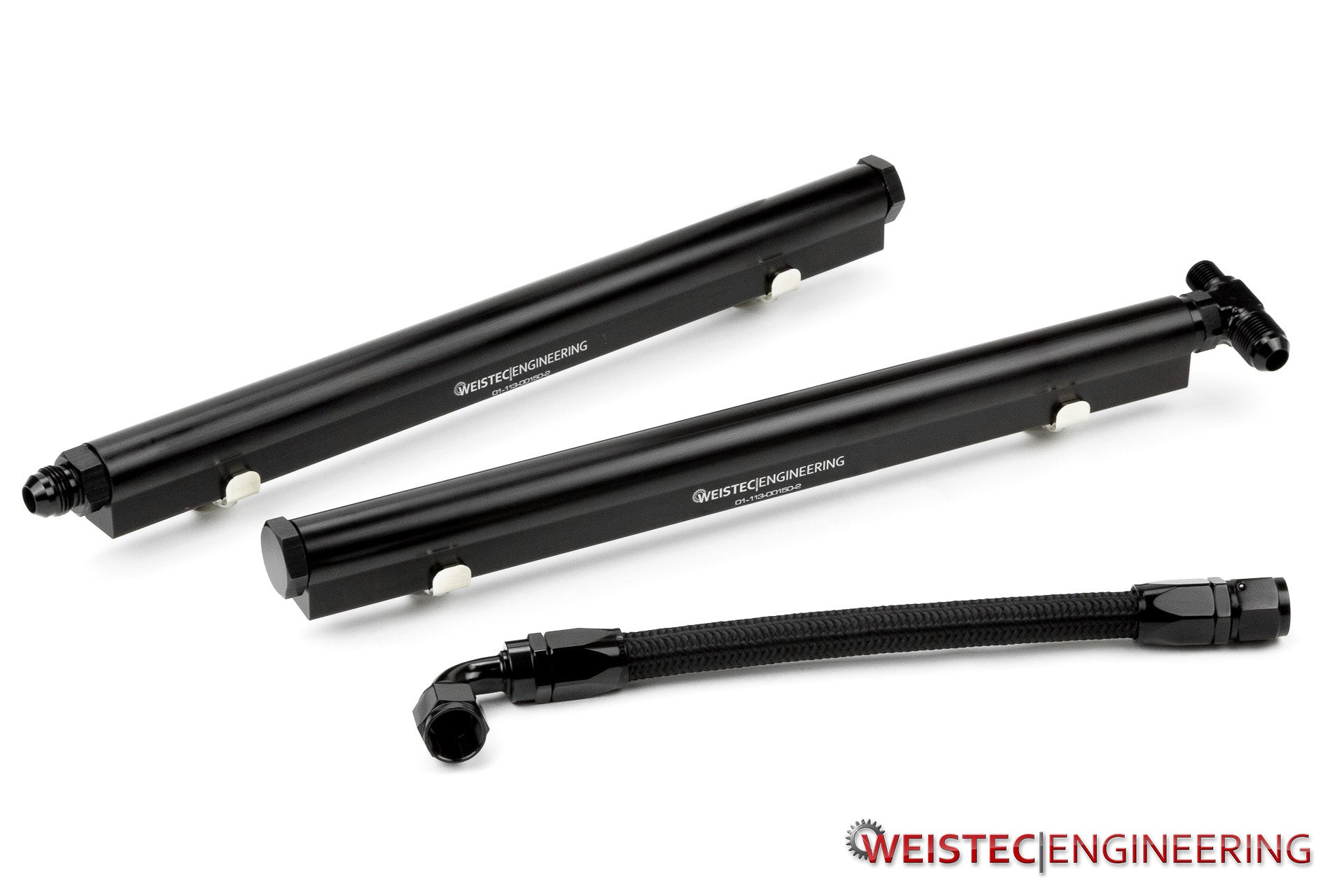

High Flow Billet Fuel Rail System**
-

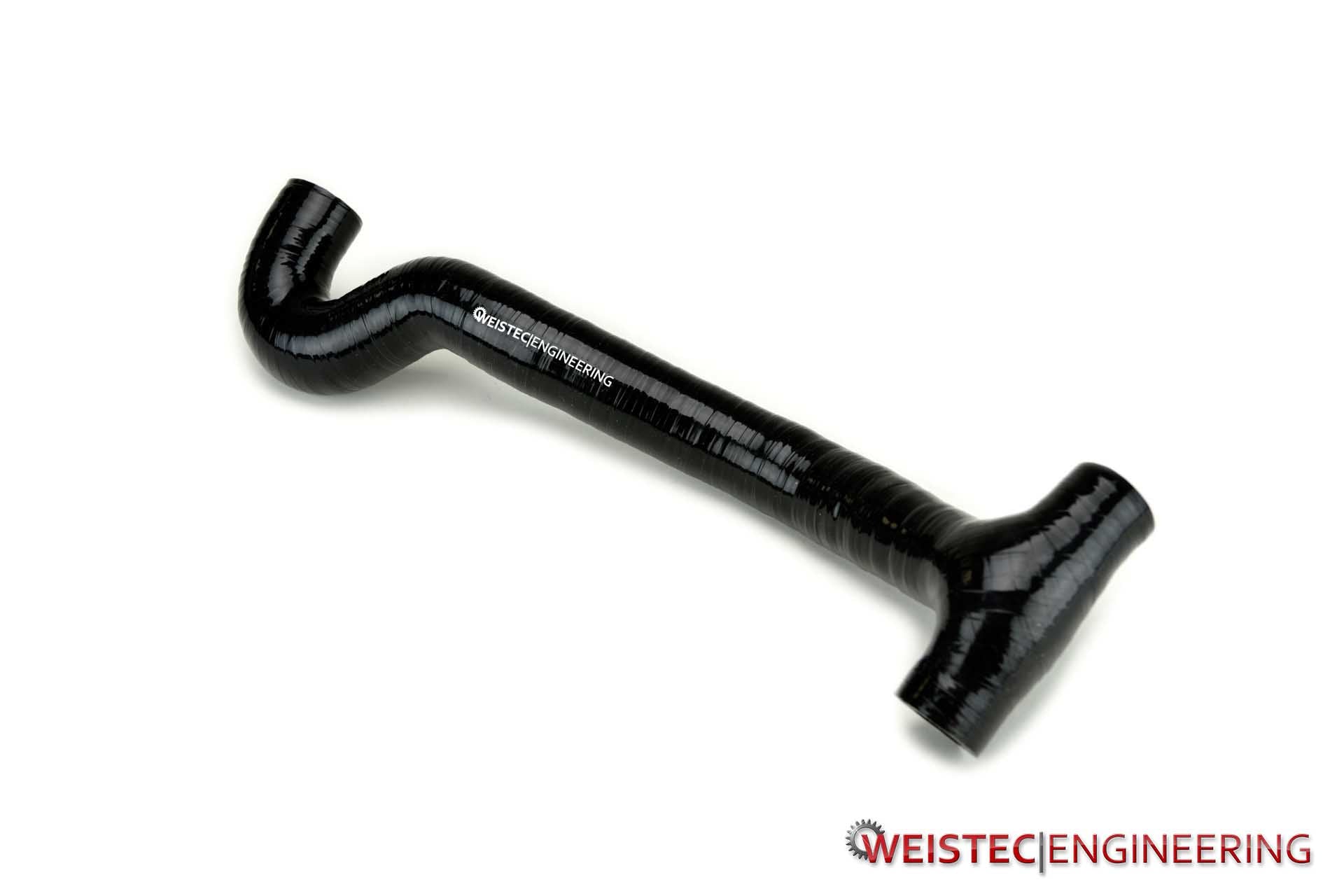

Molded Silicone Air Pump and Throttle Body Coupler
-

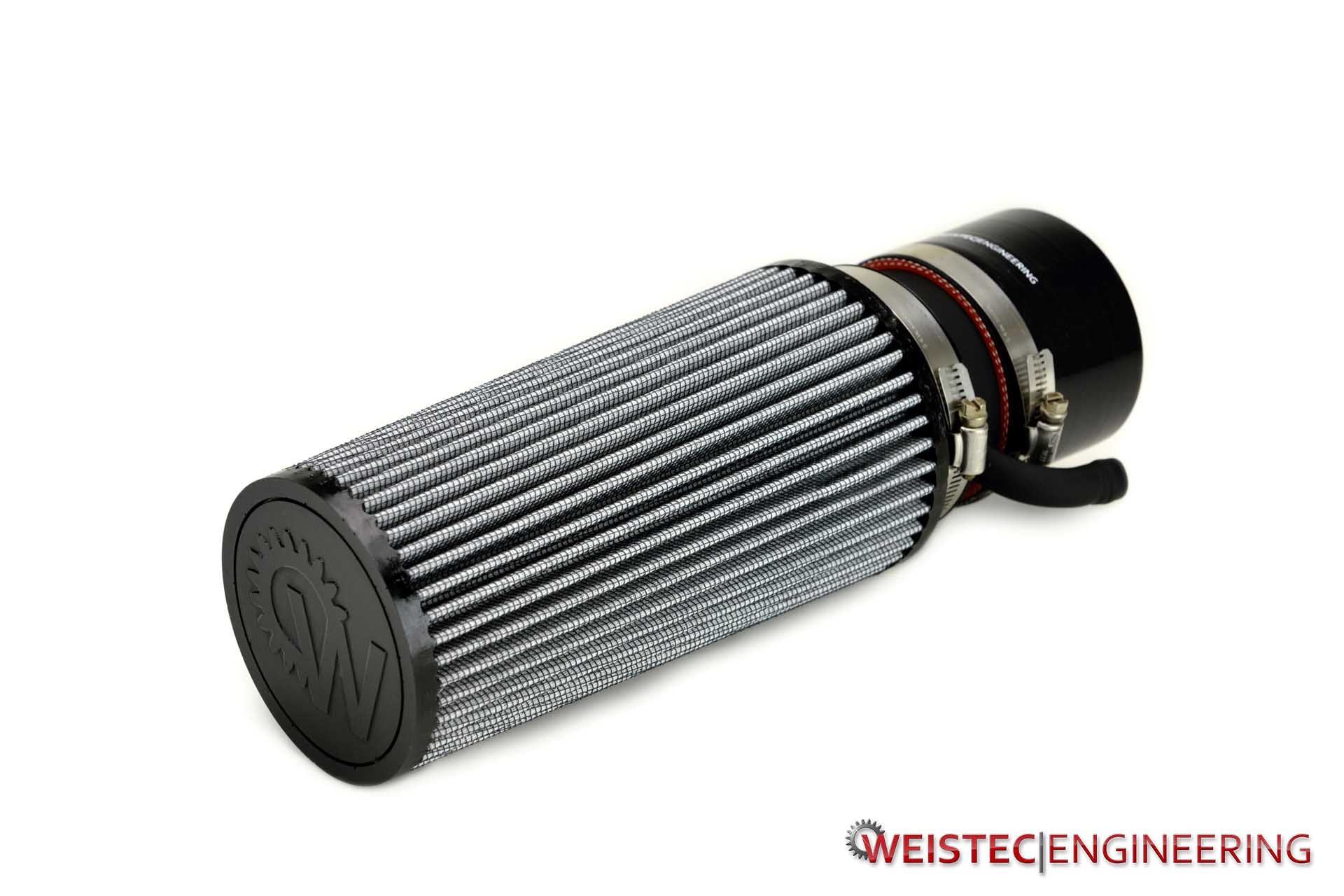

Weistec Weaved Cotton Fiber Air Filter
-

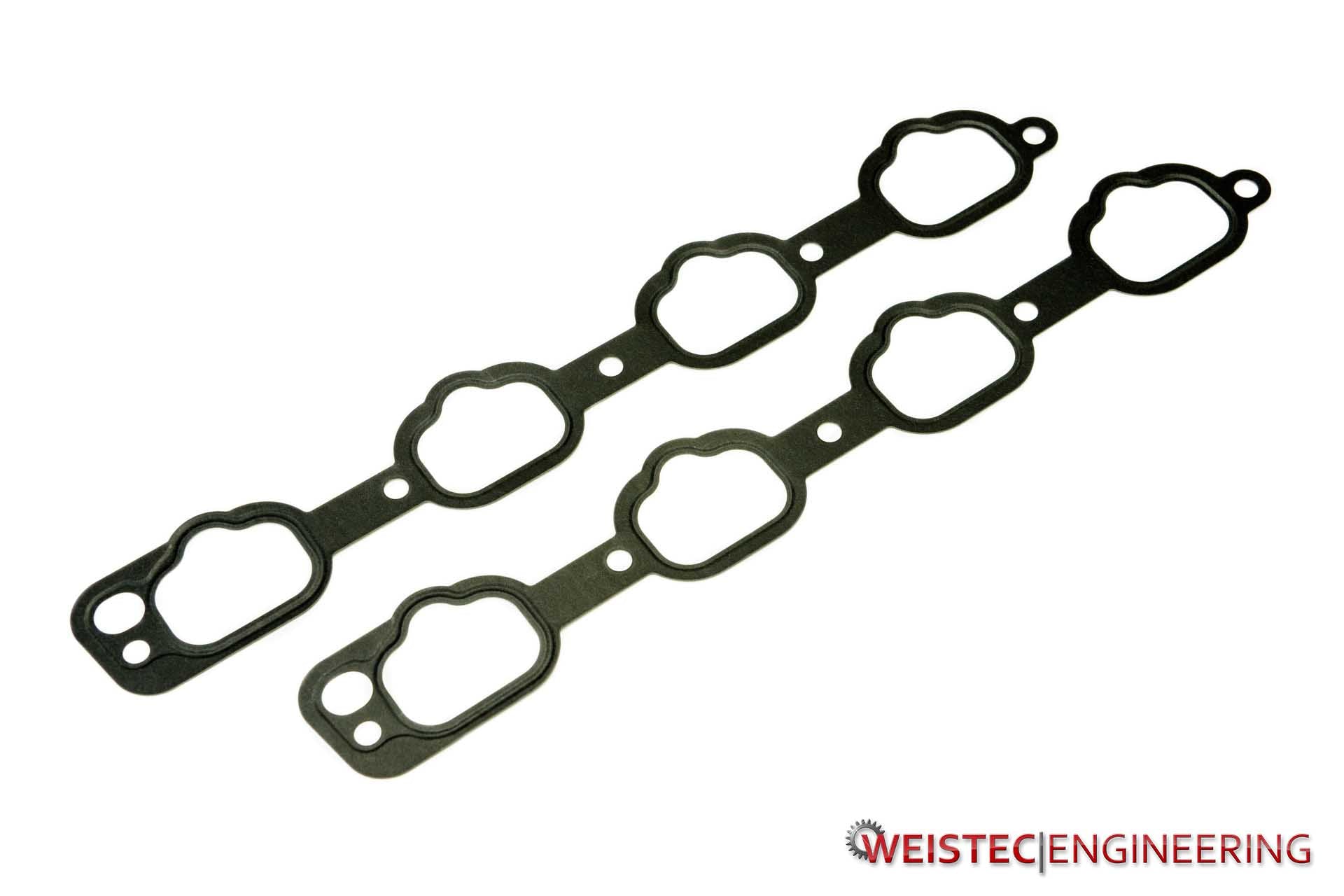

New OEM Gaskets
-

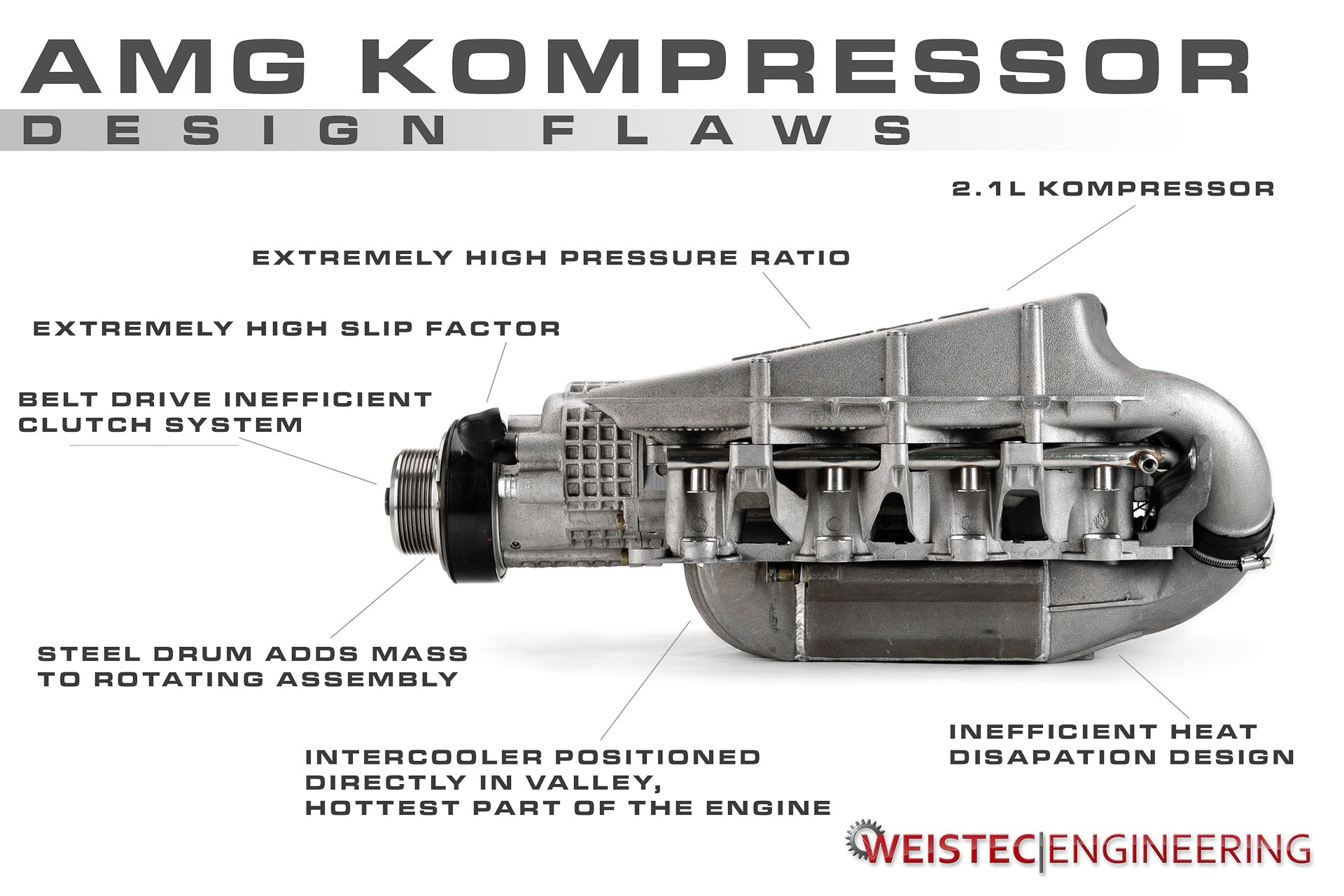

Saves 50 Lbs. vs Factory Kompressor
-
67.5mm Supercharger Pulley
*Note: Weistec M113K Supercharger is designed to run on the original diameter crank pulley, whether it be an OEM
crank pulley, or the Weistec Modular Crank Pulley with a 150mm ring. The provided belt will only be compatible with a
stock diameter crank pulley and the 67.5mm supercharger pulley provided. Those running a larger diameter crank
pulley should reinstall the factory crank pulley to ensure boost pressures are at appropriate and safe levels.
**Note: Fuel injectors are not included. Consult your tuner of preference for their recommended fuel injectors
for your power goals.
Vehicle fitment
- 2004-2006 Mercedes-Benz CLS55 AMG Coupe
Installation manual
Weistec part number: 01-113-01648-5 · UPC: 810089560834
