Weistec RZR Pro R Turbo System v2 Stage 1 Polaris RZR Pro R 4

Brand: Weistec

SKU: WEI01-004-02435-9

Product Code: Turbo Kits

$9,499.00

The 2.0L engine in the Polaris RZR Pro R is a very capable engine making good...

Quantity

Subtotal: $9,499.00

Quantity must be 1 or more

I agree with the terms and conditions

2 customers are viewing this product

Weistec RZR Pro R Turbo System v2 Stage 1 Polaris RZR Pro R 4

Description

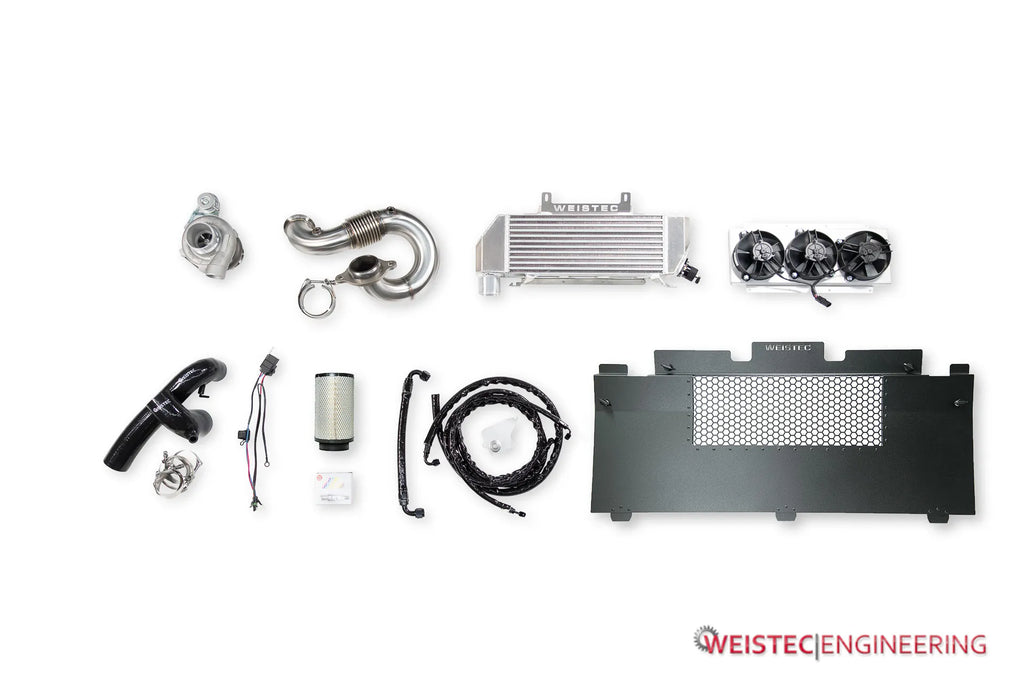

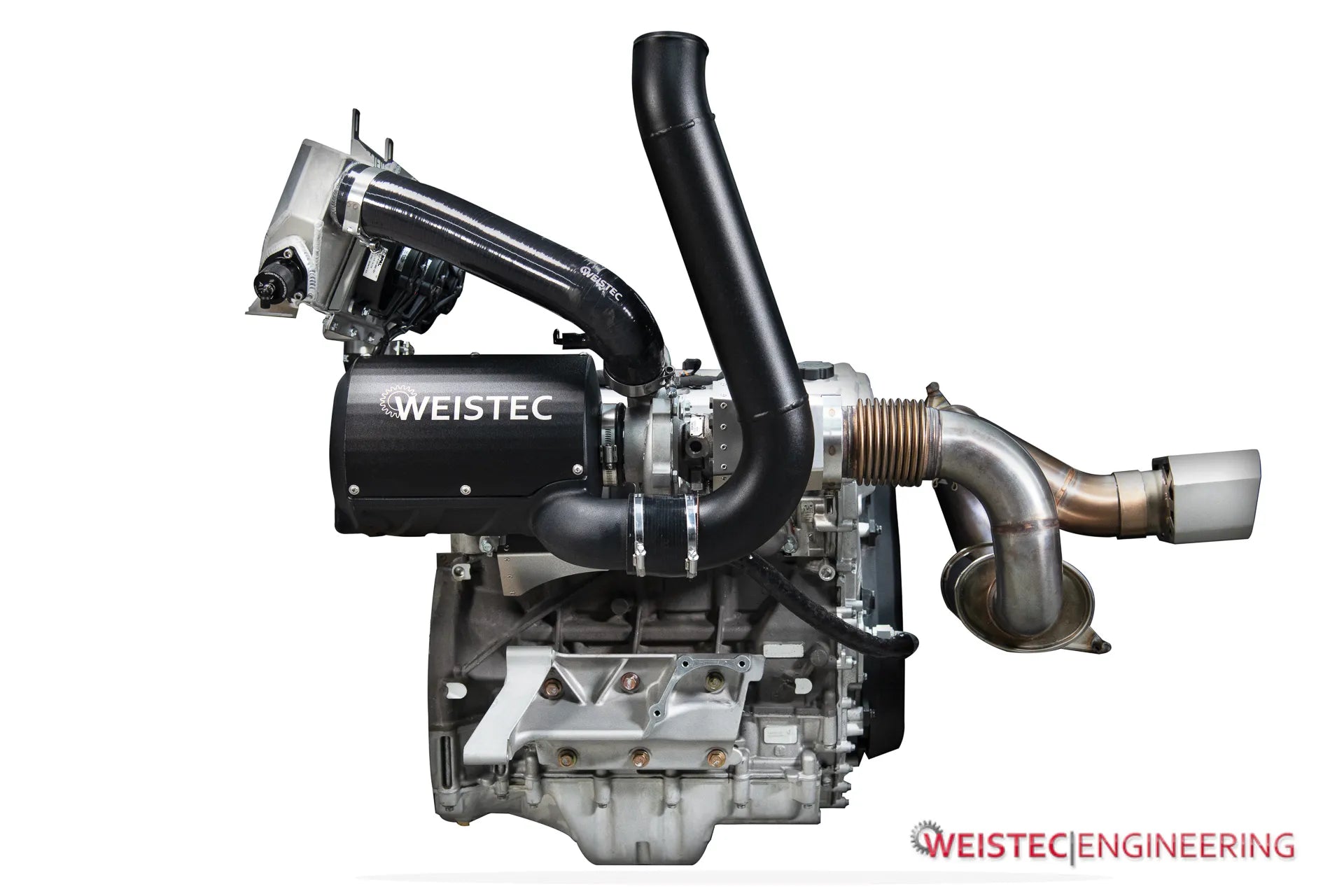

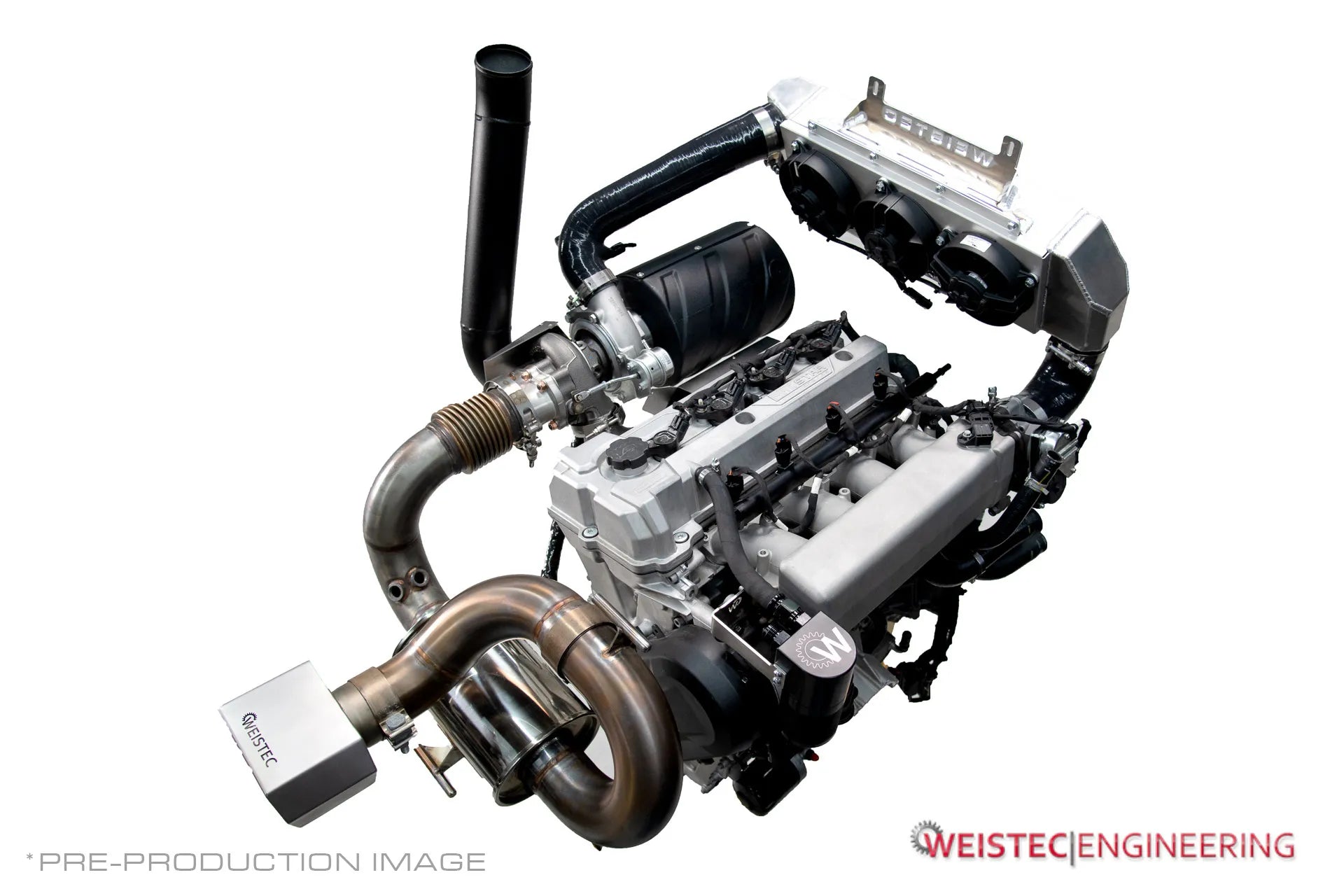

The 2.0L engine in the Polaris RZR Pro R is a very capable engine making good power in stock form. As good as performance is right from the factory, there will always be those of us that need more. That is why we have designed the Weistec Turbocharger System for the Polaris RZR PRO-R, a turn-key turbo kit that has OEM like fitment and quality while also being easily customizable.

MAXIMUM PERFORMANCE

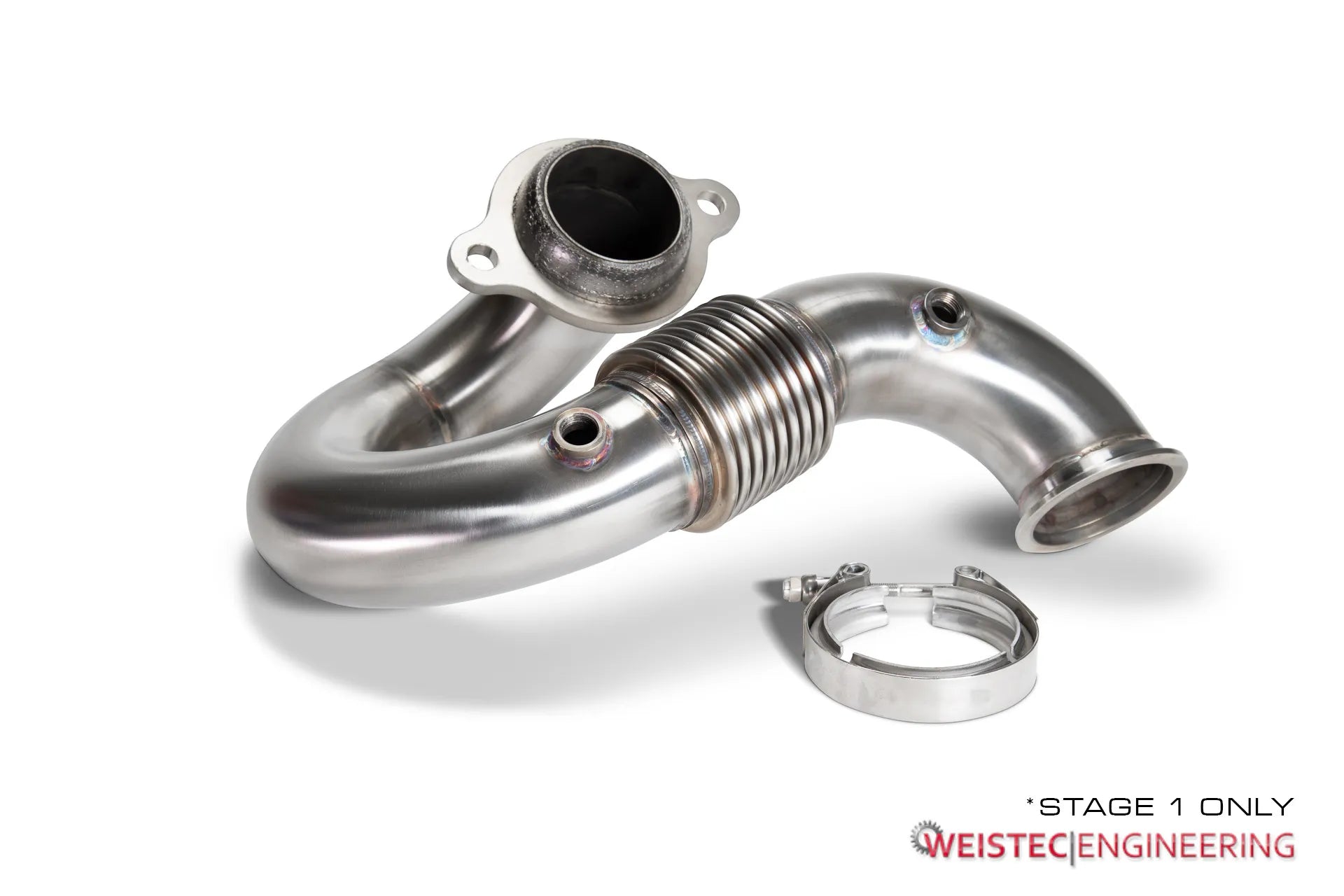

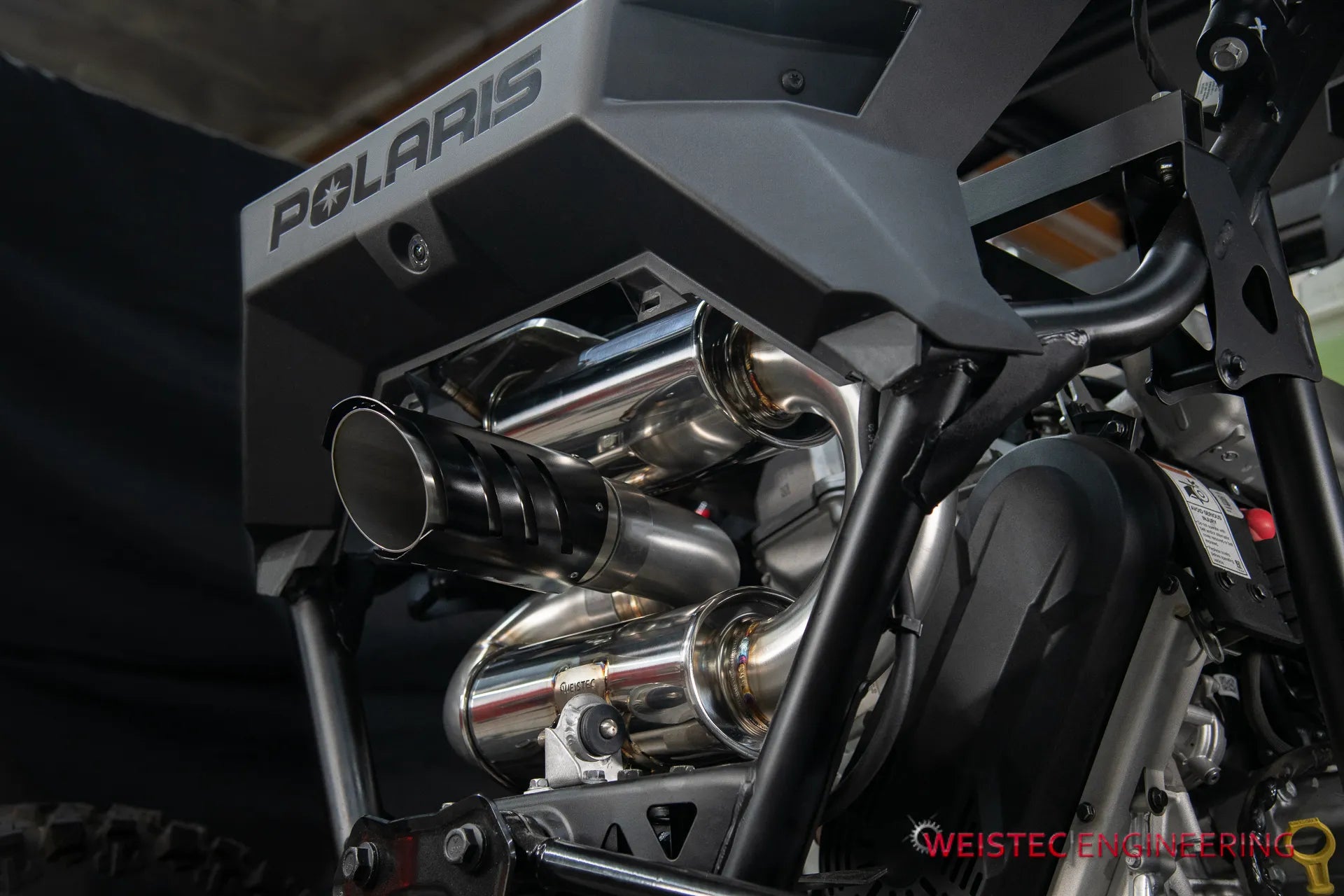

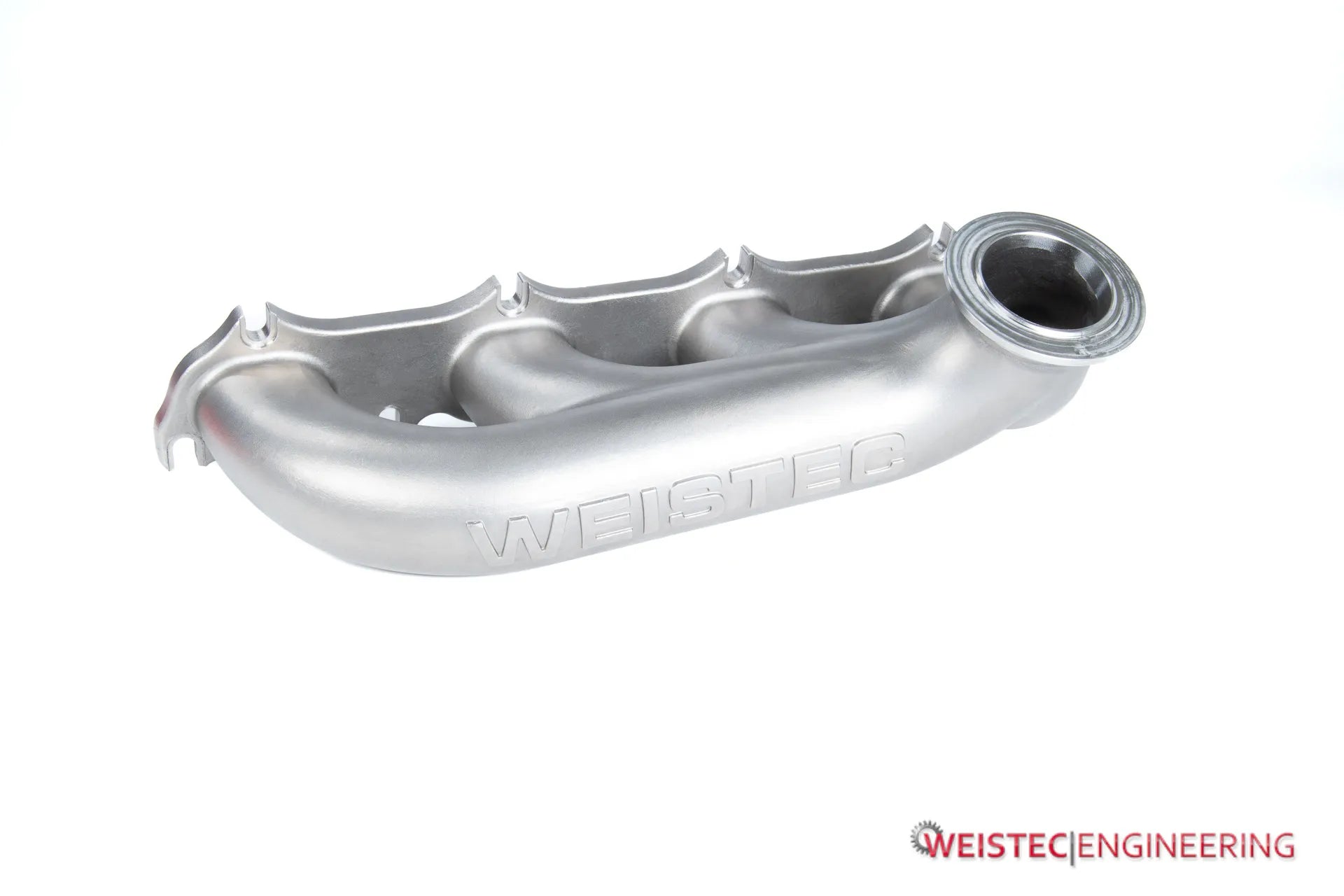

The base kit features a cast stainless steel manifold to avoid cracking issues that can be common on tubular turbo headers. The manifold has a V-band connection to ensure leak free mating to the Garrett G25-550 Turbocharger. The downpipe is made of 304SS material and features a flex section as well as a flange to directly bolt onto the factory muffler/catalyst/spark arrester, meaning any bolt on aftermarket muffler system will also be compatible.

QUALITY AND FINISH

All exhaust components are tig welded 304 stainless steel construction and flanges are CNC machined to ensure best quality. After welding, exhaust plumbing is brushed for a clean finished look.

ALL NECESSARY HARDWARE INCLUDED

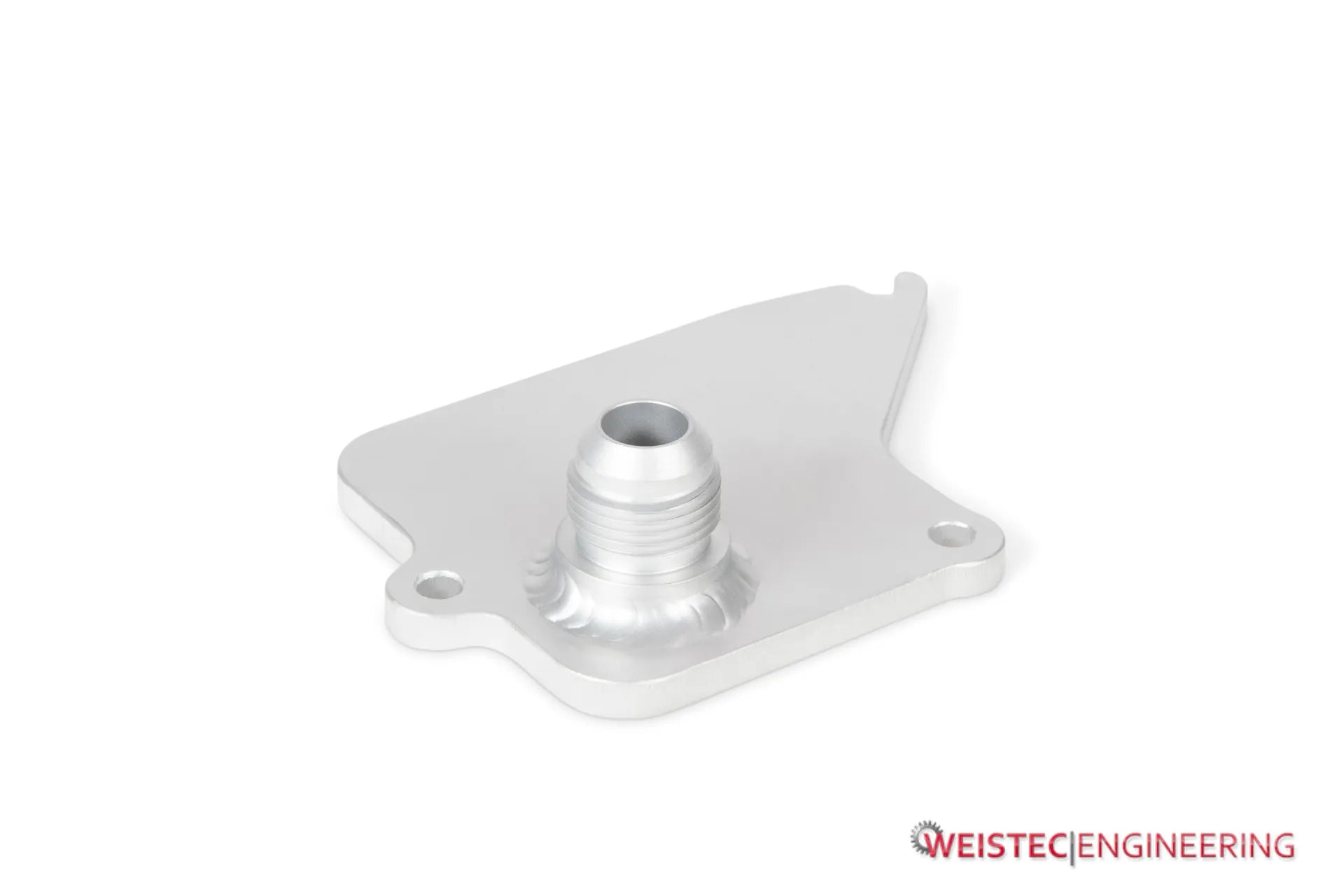

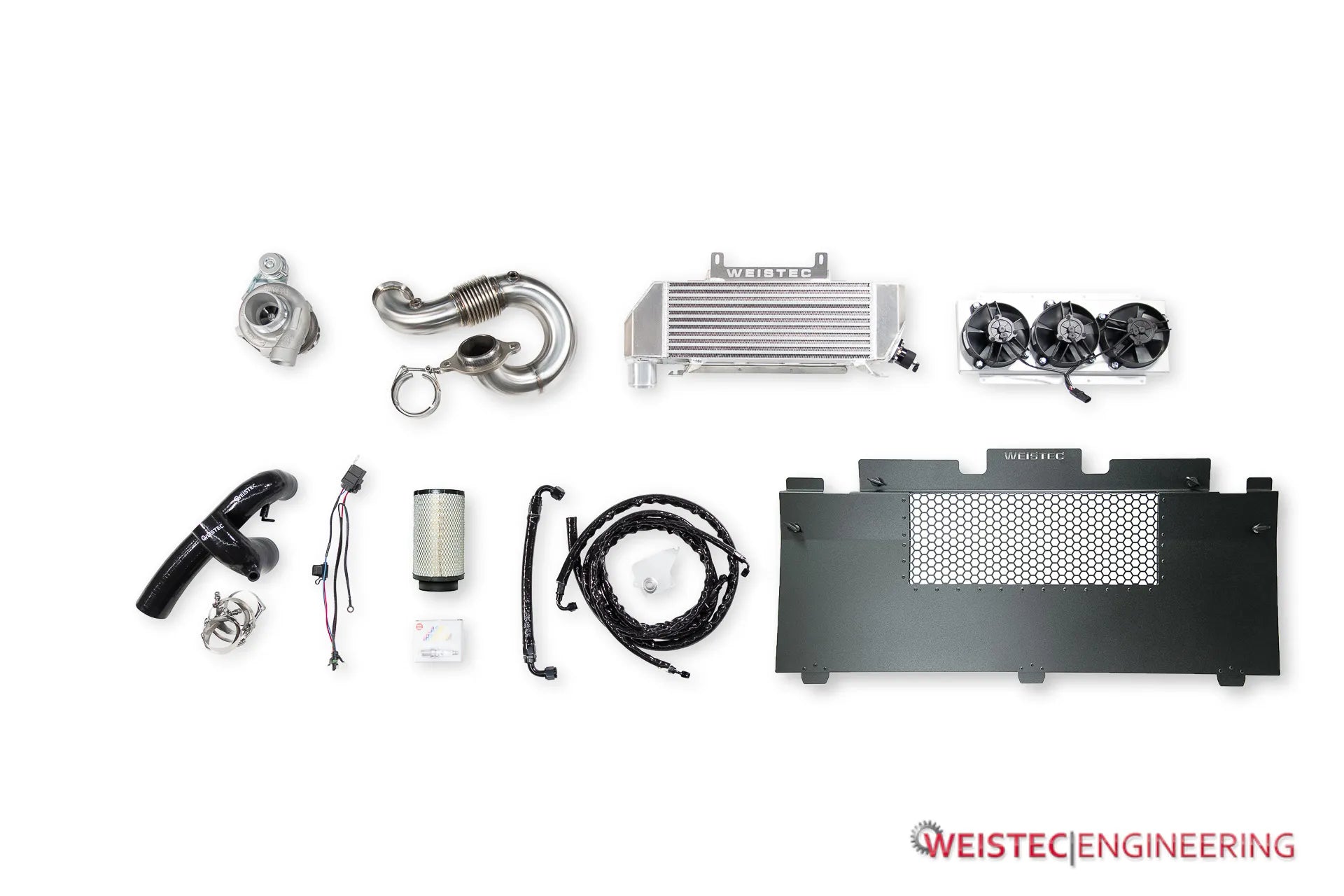

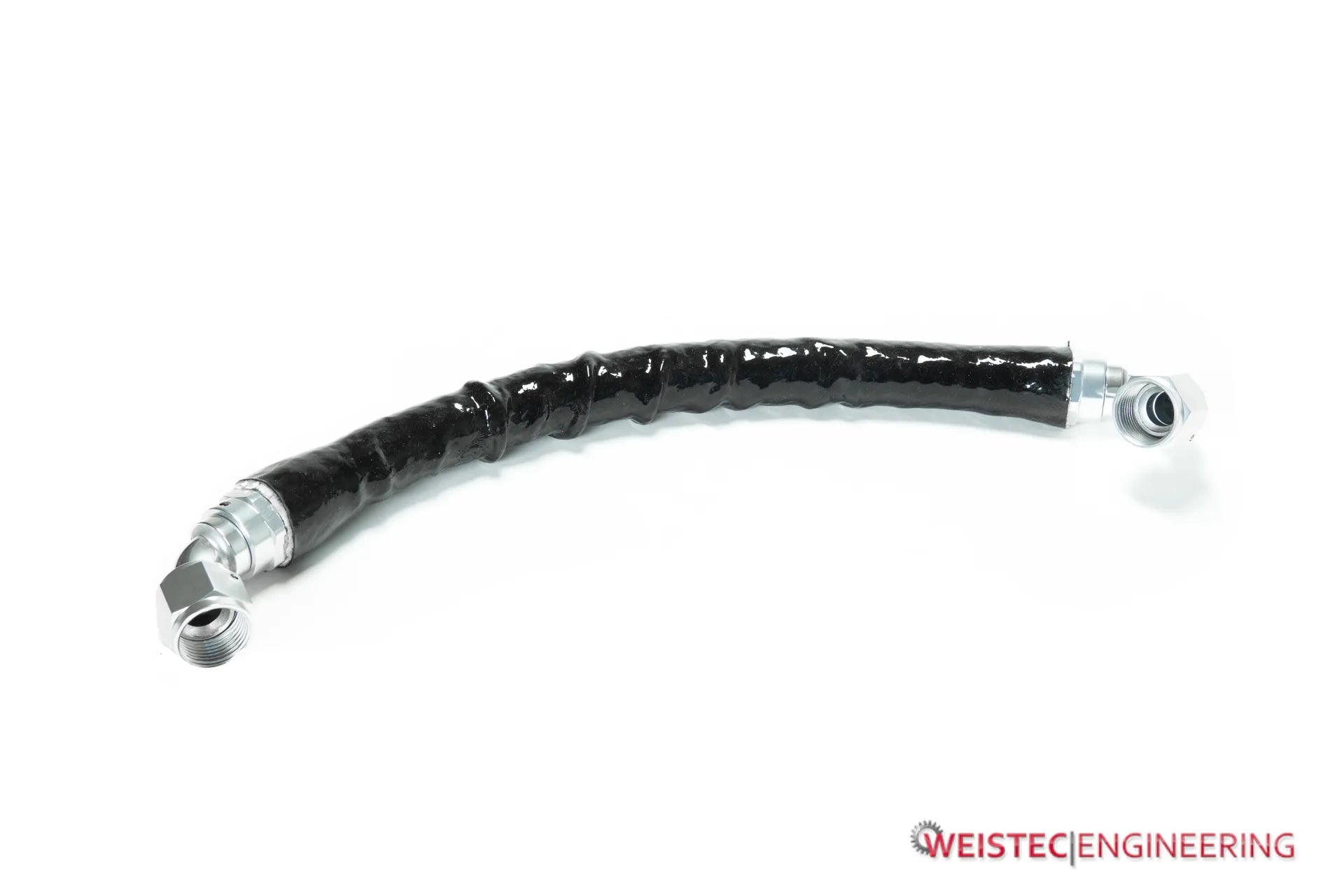

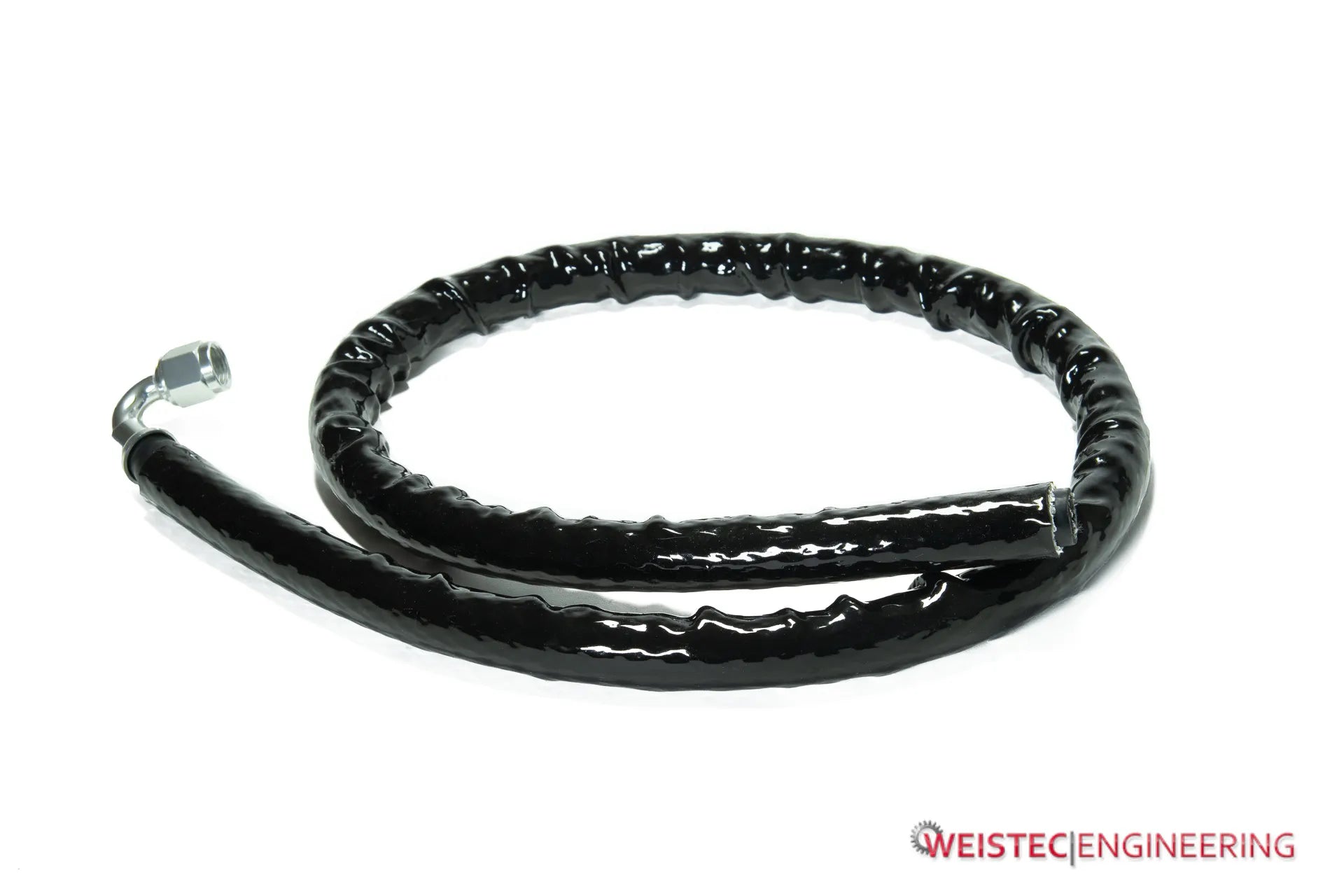

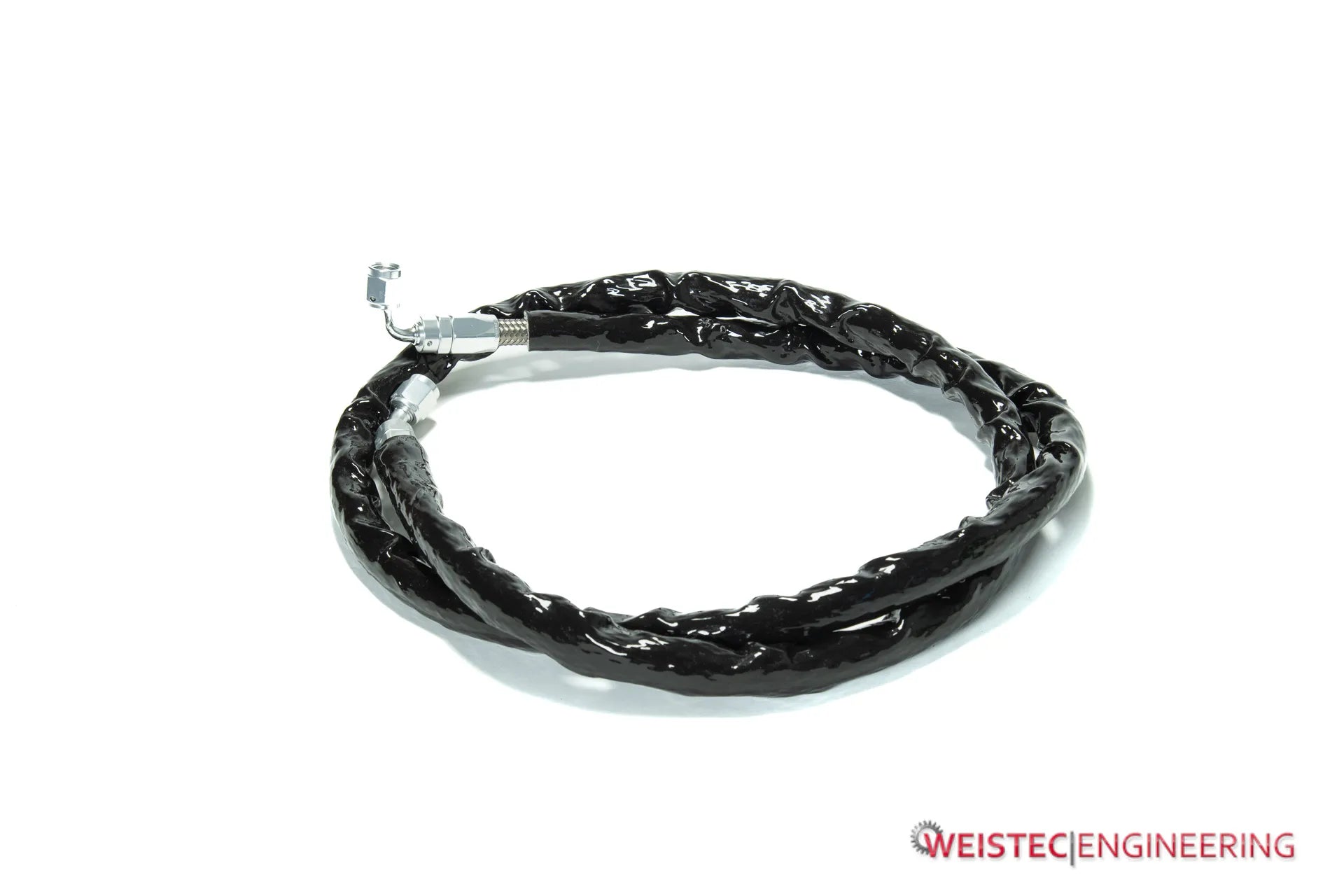

A complete set of heat-sleeved protected oil and coolant lines and all necessary fittings are included to easily supply the turbo with oil and coolant. A billet aluminum manifold adapter is also included to supply boost/vacuum to the Weistec Anti Surge Valve as well as a water/meth injection controller and/or a boost gauge.

MAXIMUM COOLING

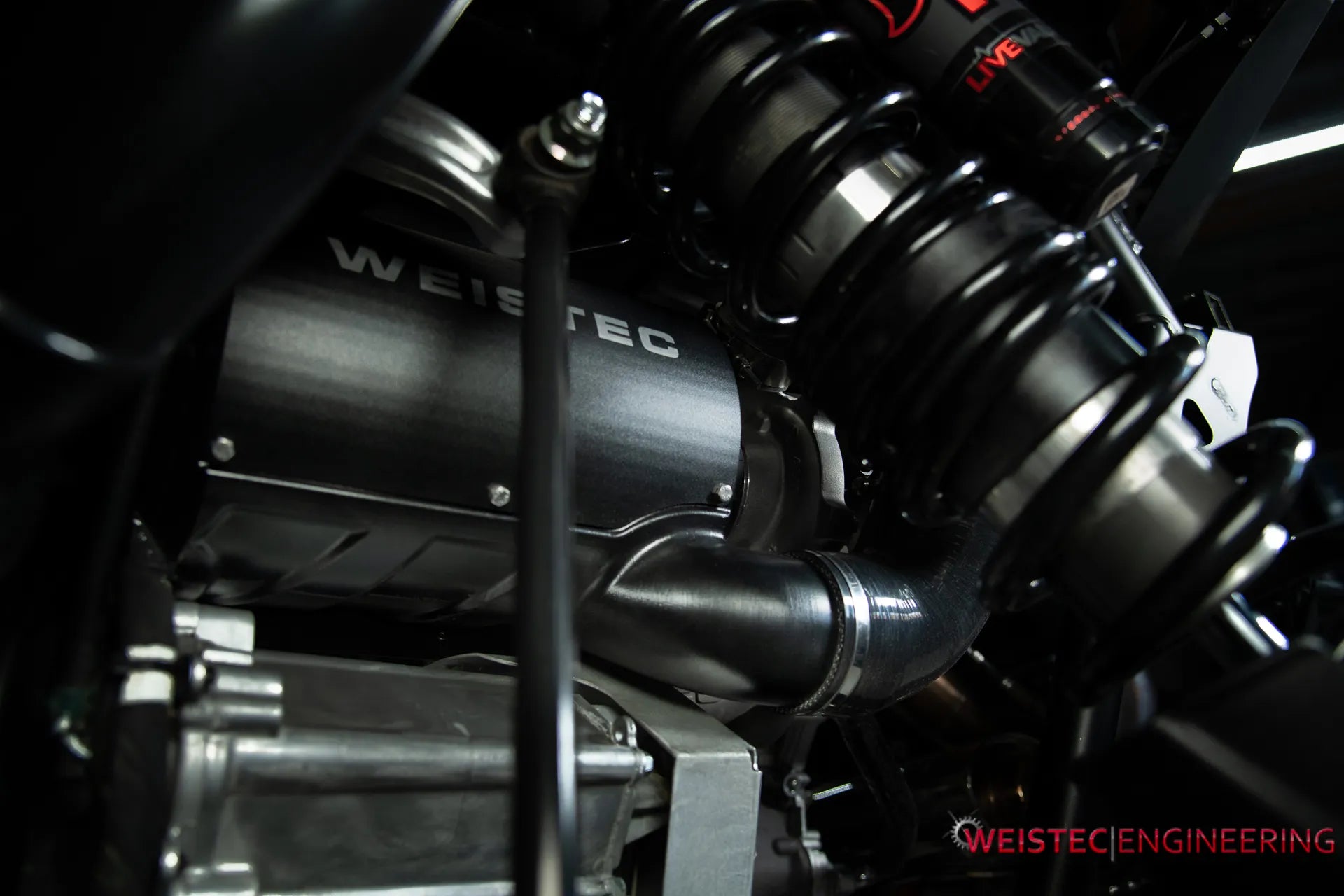

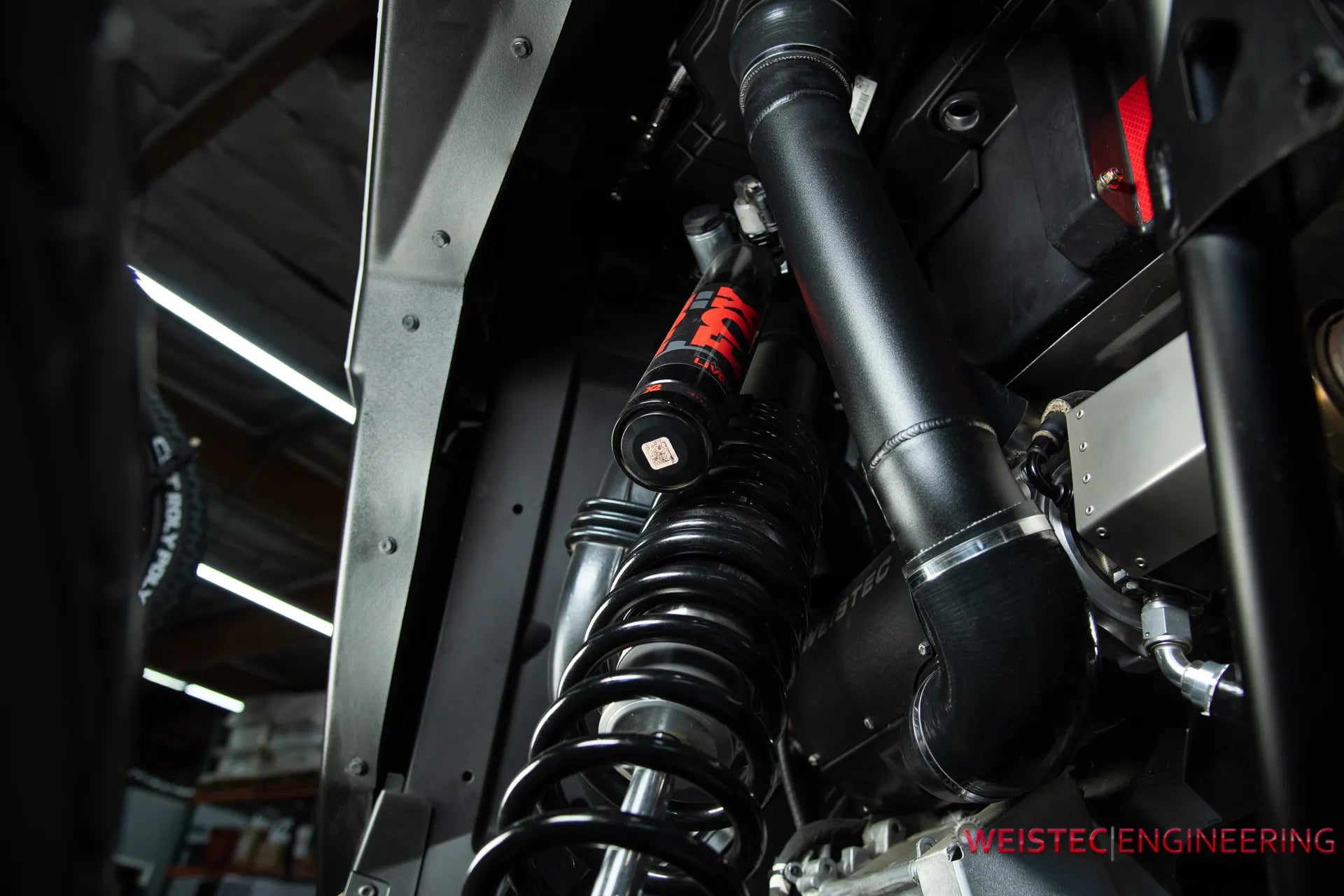

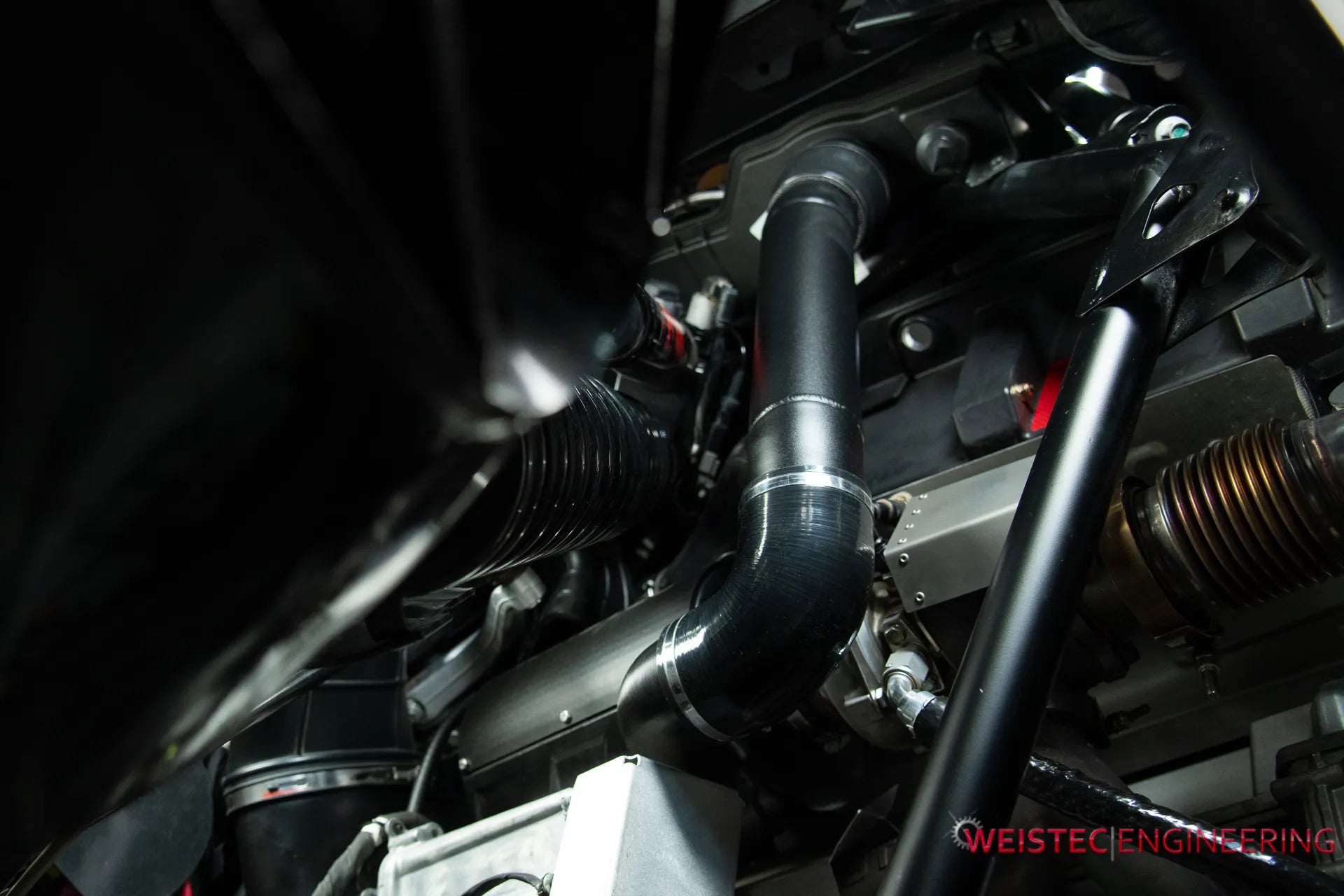

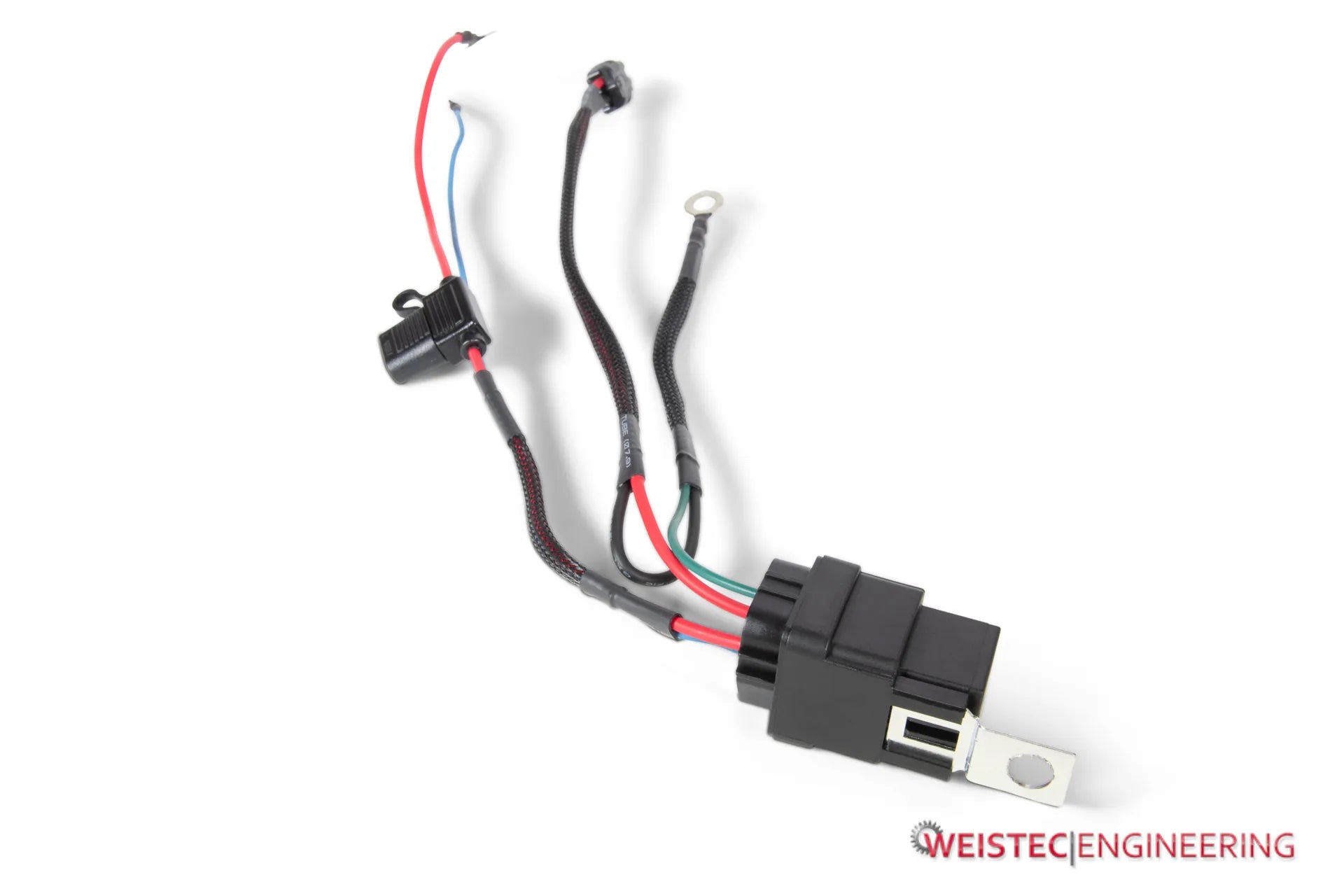

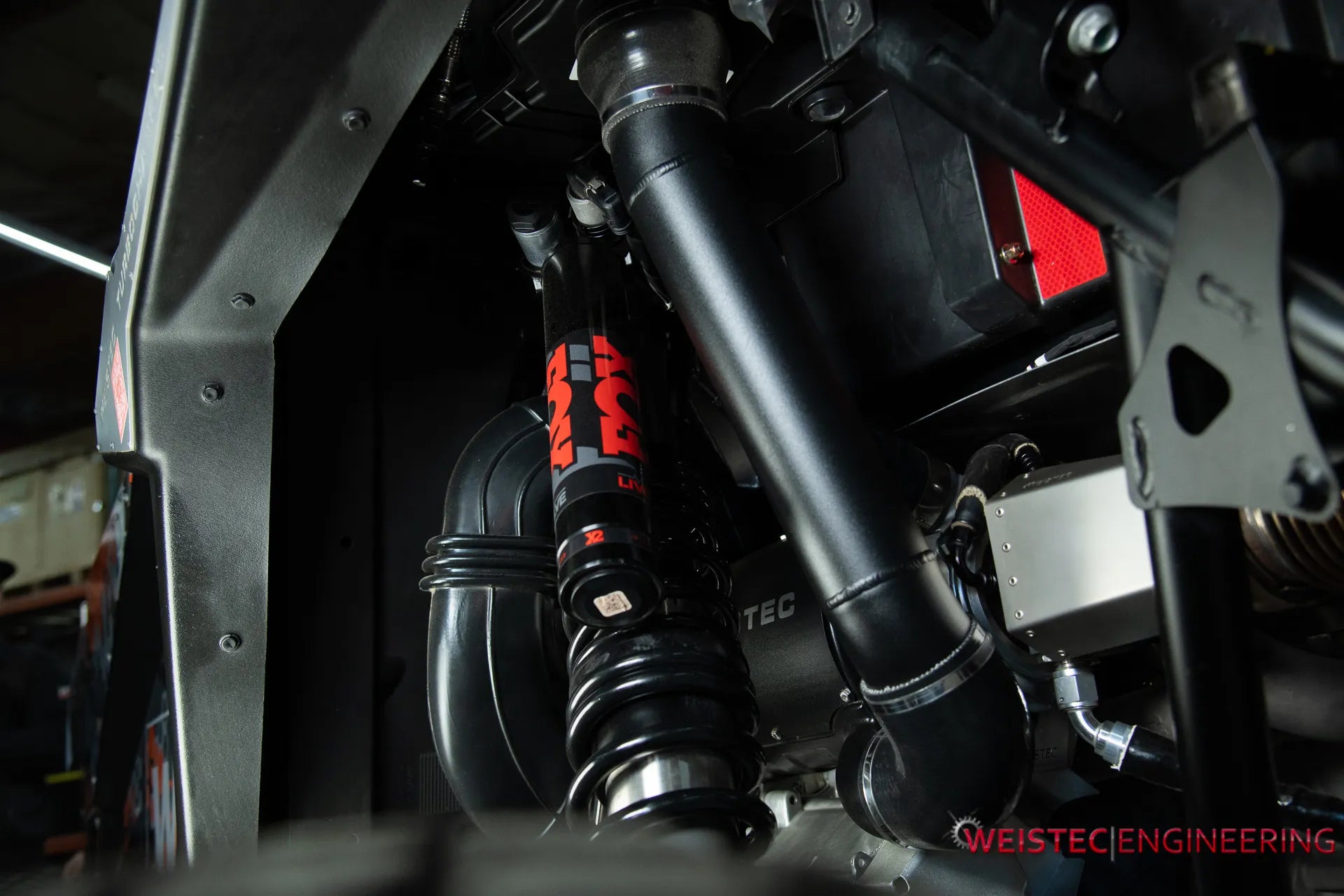

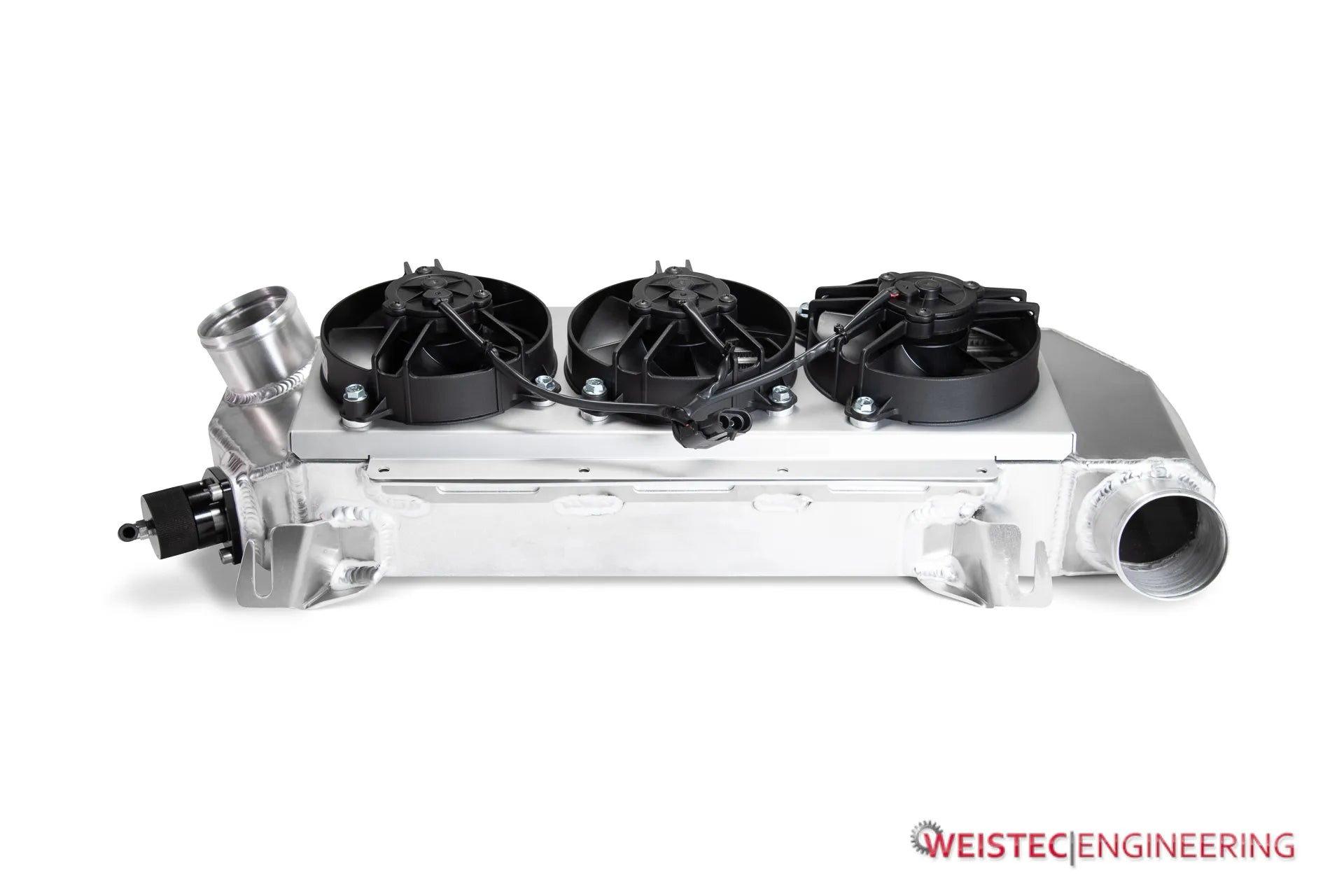

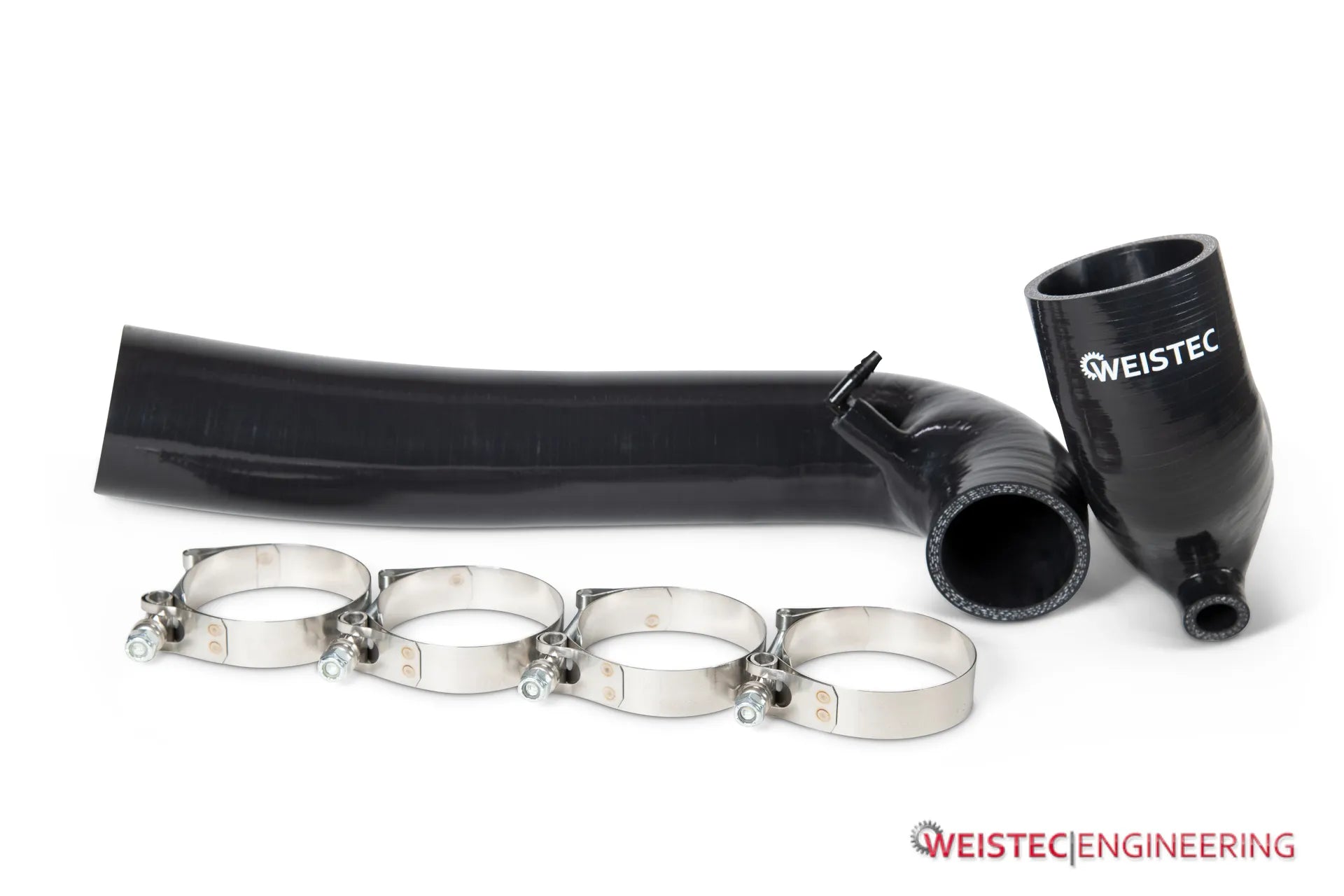

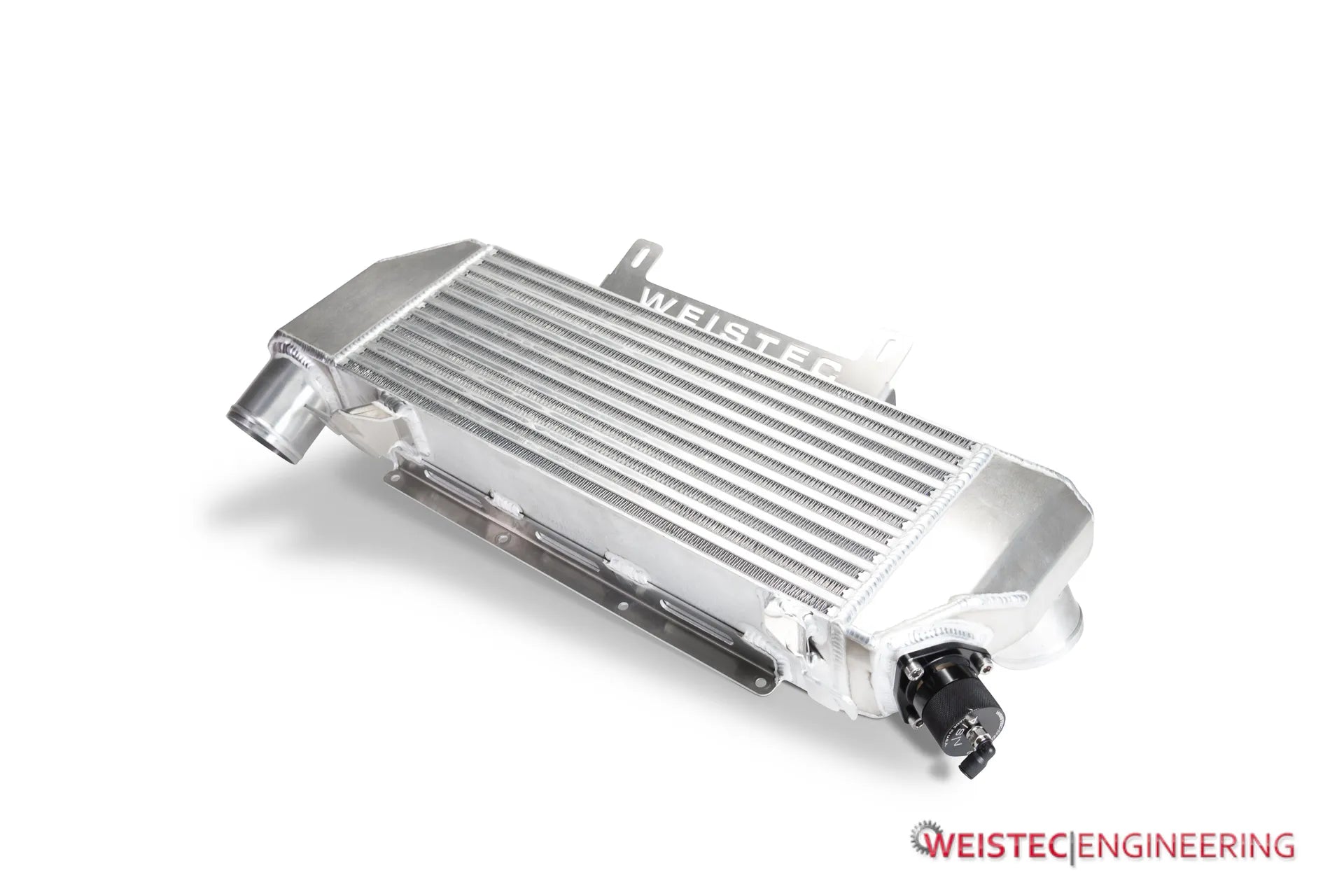

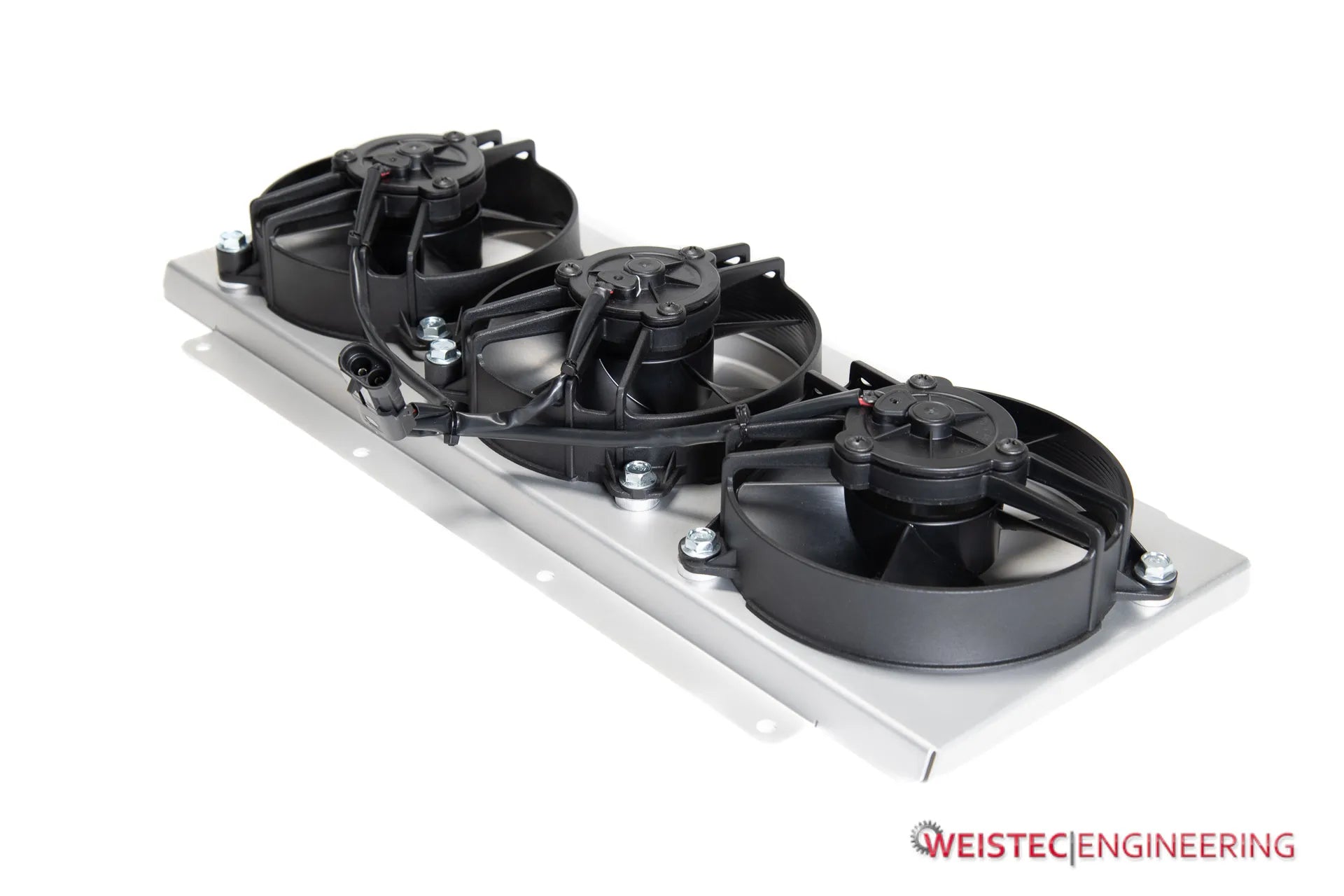

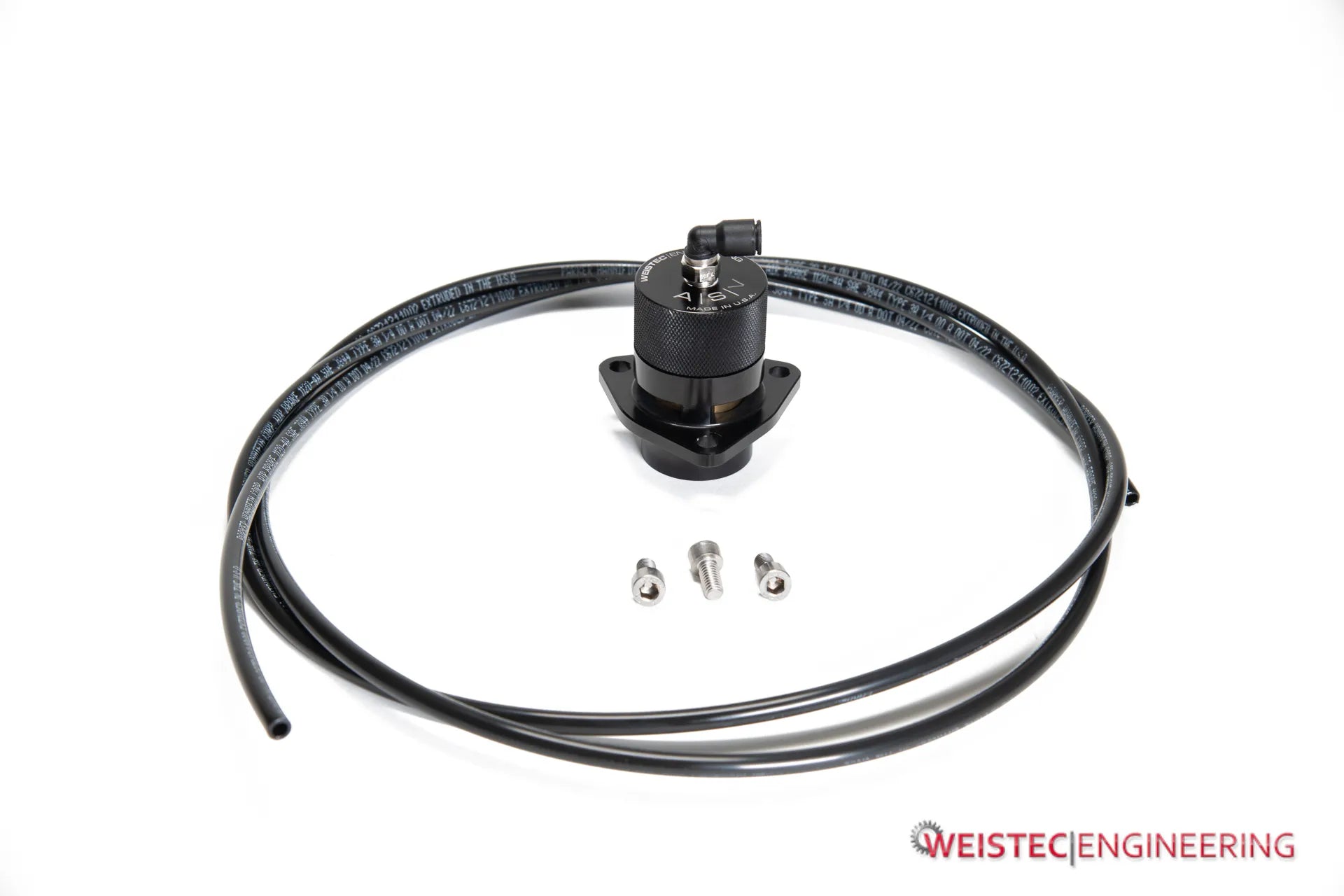

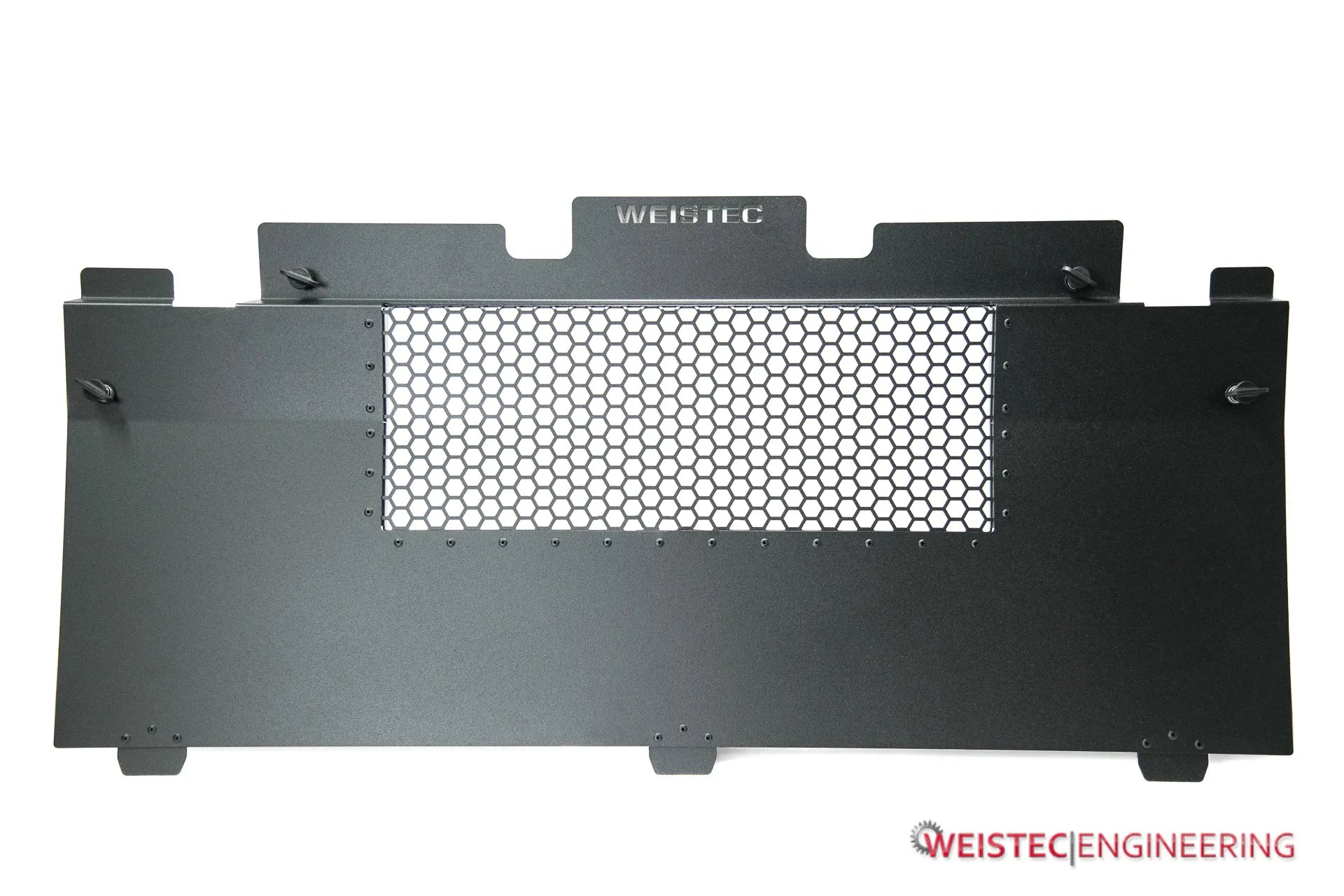

On the cold side of things is a custom air to air intercooler which mounts in the “firewall” between the engine and the seats. Built into one of the end tanks is a flange for the Weistec Anti Surge Valve which vents off excess pressure whenever the throttle is released creating a “blow-off” sound. A new powder coated aluminum panel is supplied to replace the factory panel and provide a path for air to flow to the intercooler and protect it from debris with an integrated stainless-steel mesh. On the back side of the intercooler is an aluminum shroud with 3 Spal fans. The fans run continuously whenever ignition is on to ensure the intercooler is constantly extracting heat from the air charge. A relay harness is included to provide power to the fans. 4 ply silicone couplers connect the turbo to the intercooler and the intercooler to the throttle body. The coupler to the throttle body features a port for a Weistec Water/Meth Injection injector for those that wish to also purchase the Weistec WMI System for their RZR Pro R.

Weistec RZR Pro R Turbo System Version 2

Key Features

60-80 hp gain at 6 PSI on 91 Octane

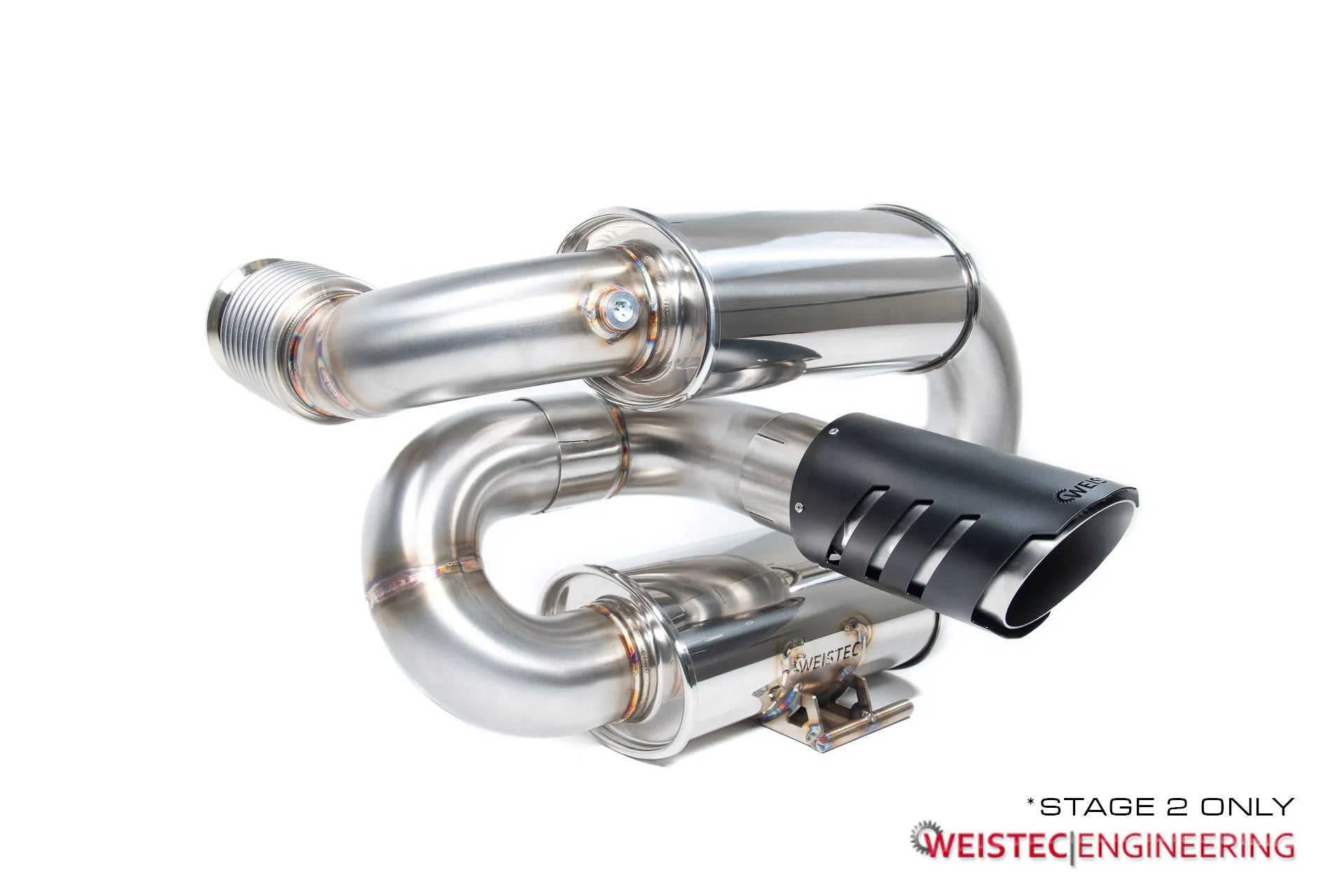

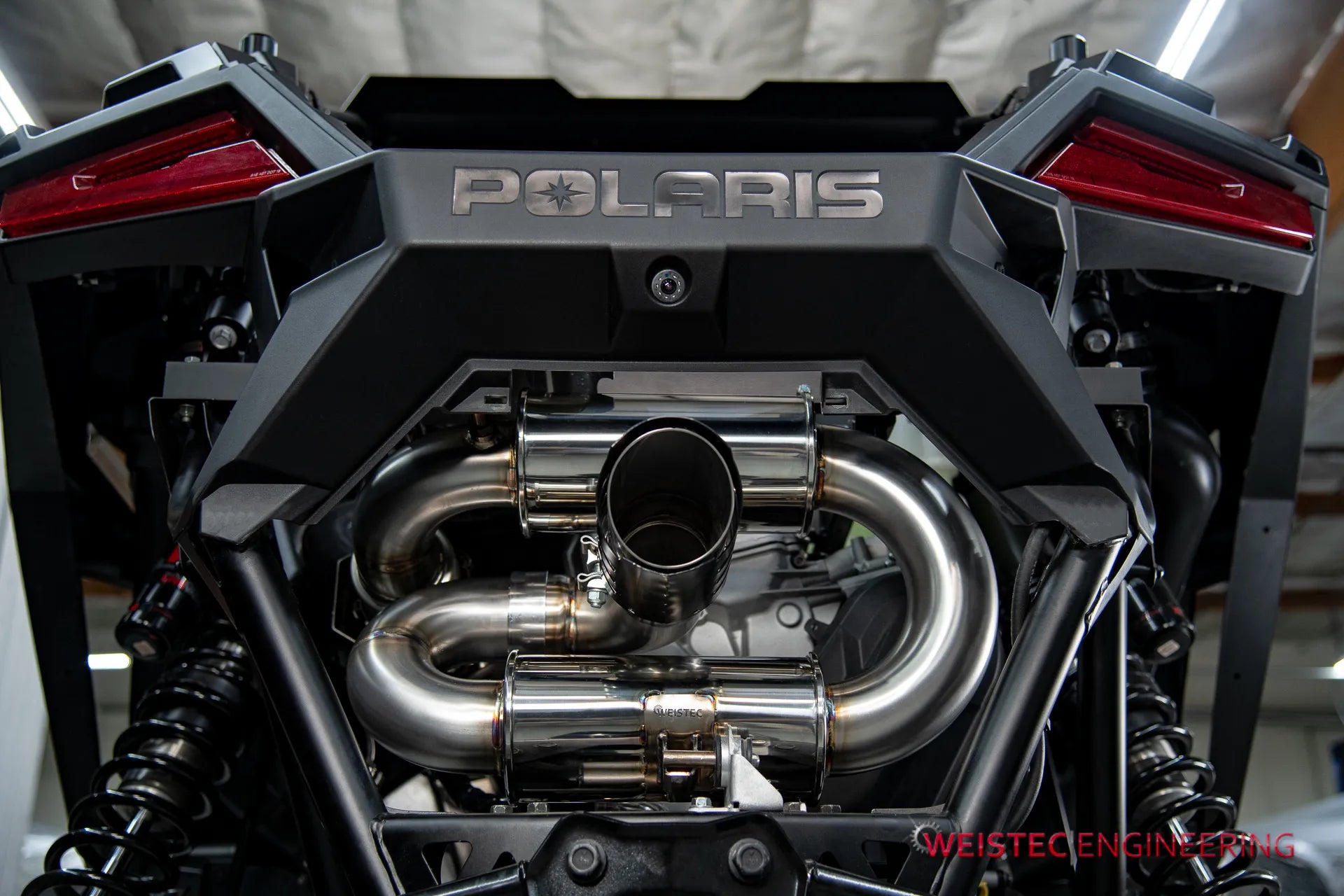

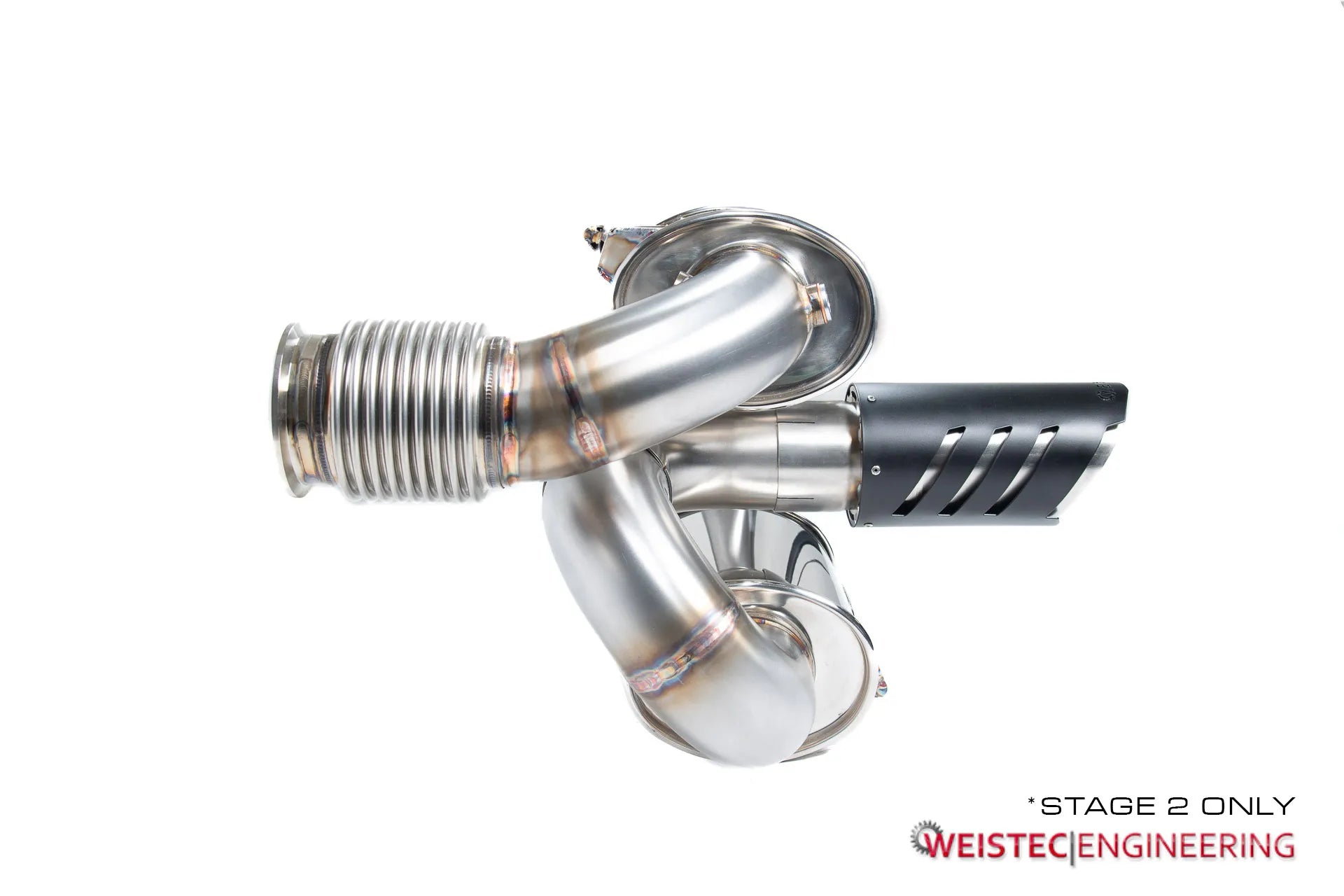

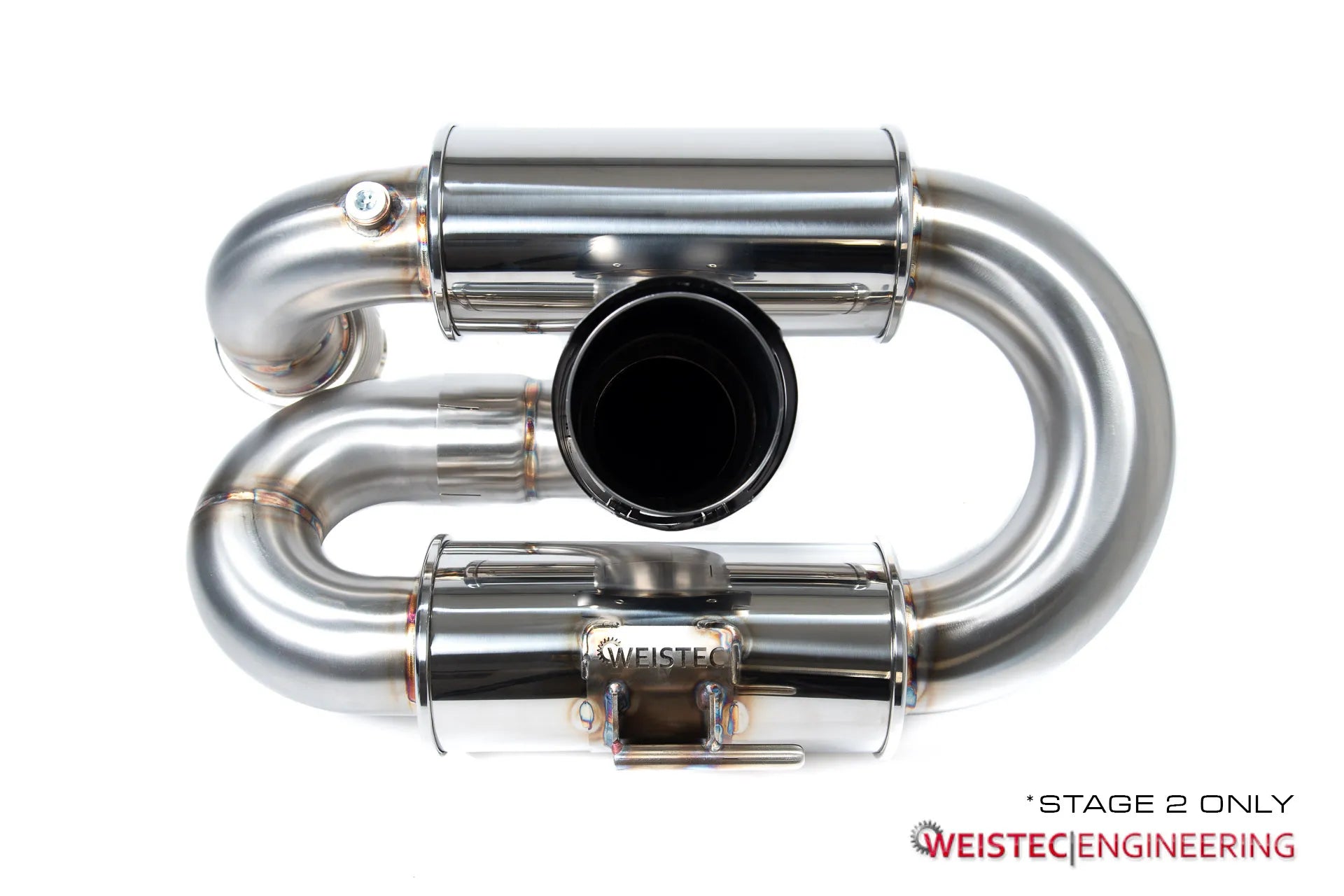

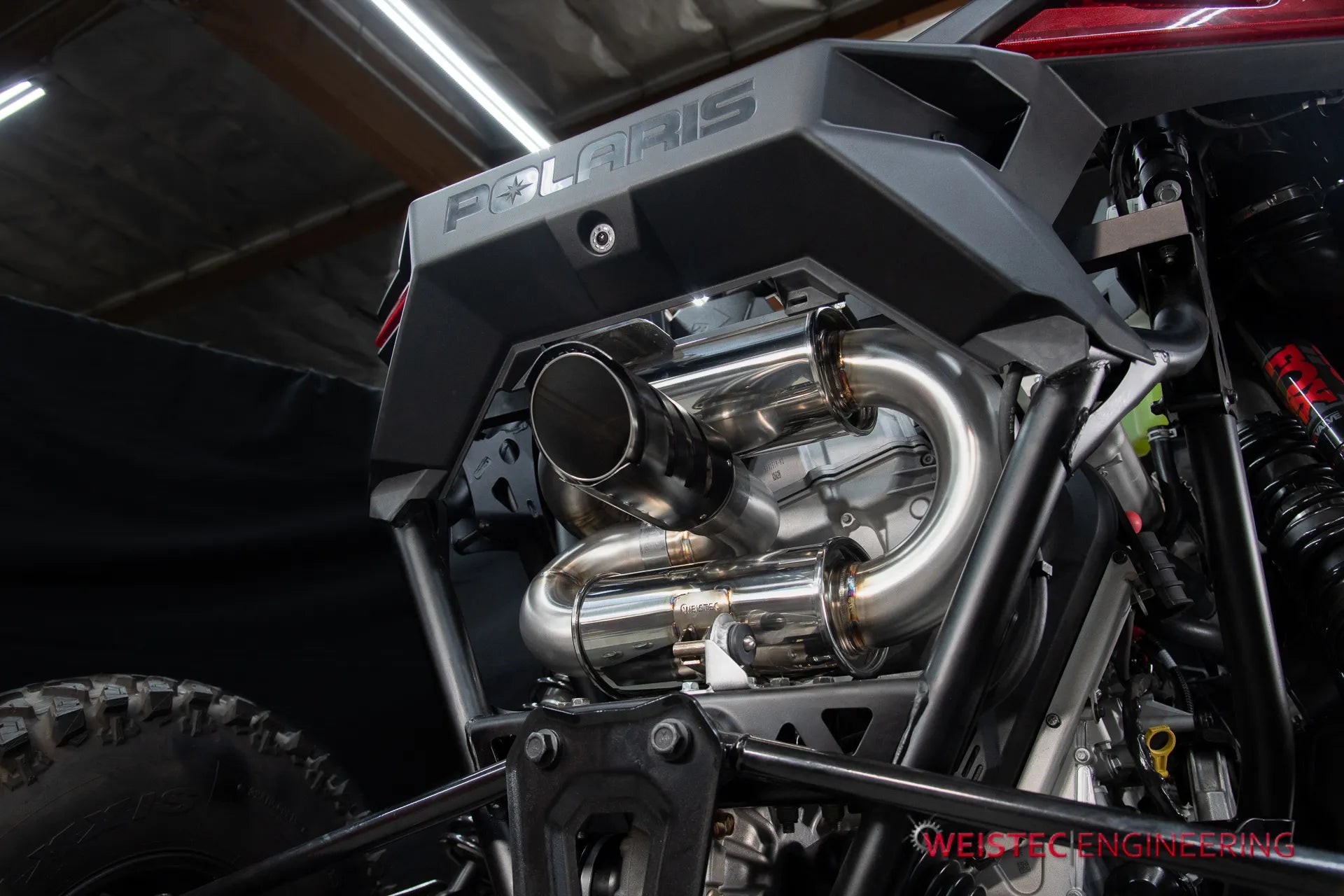

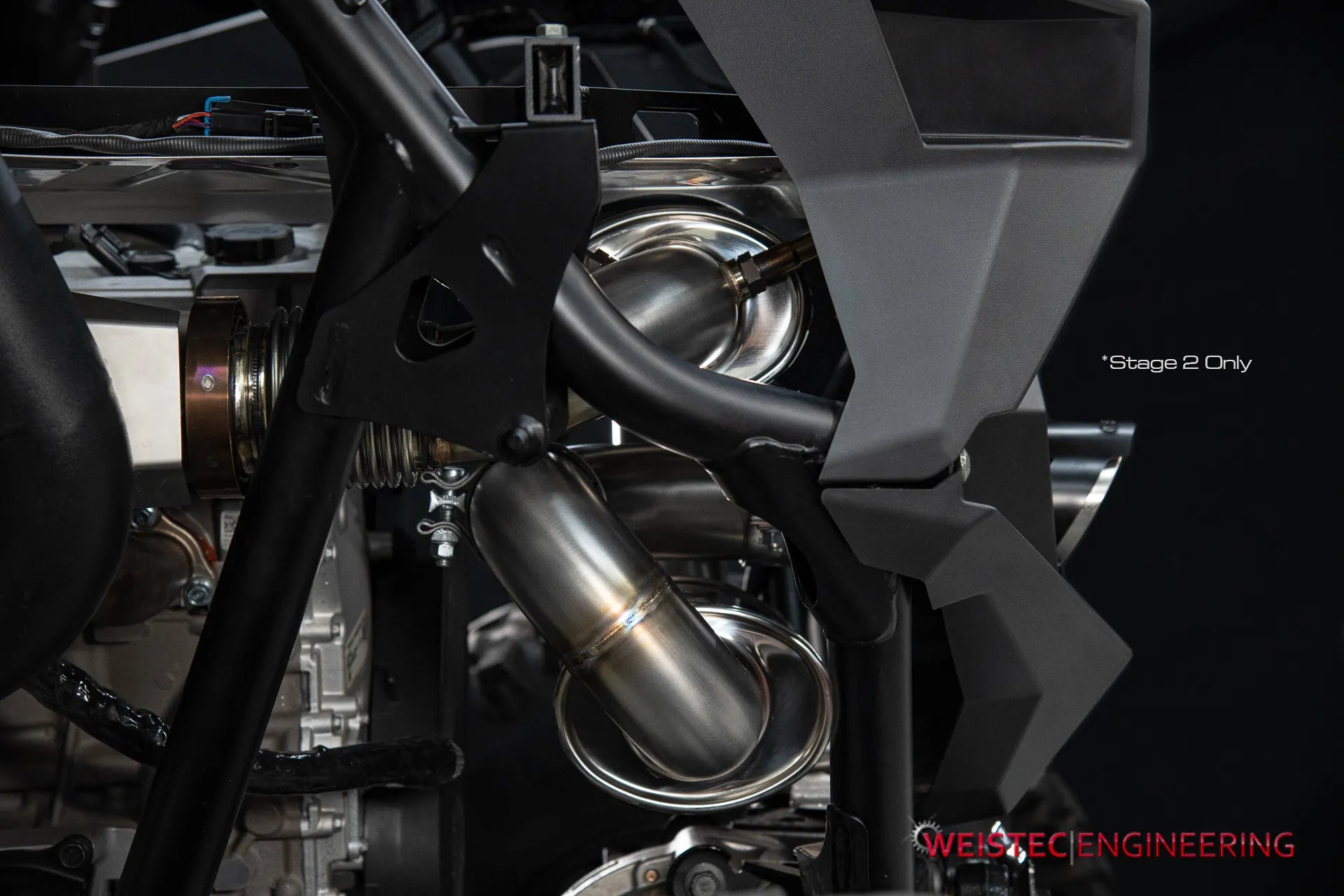

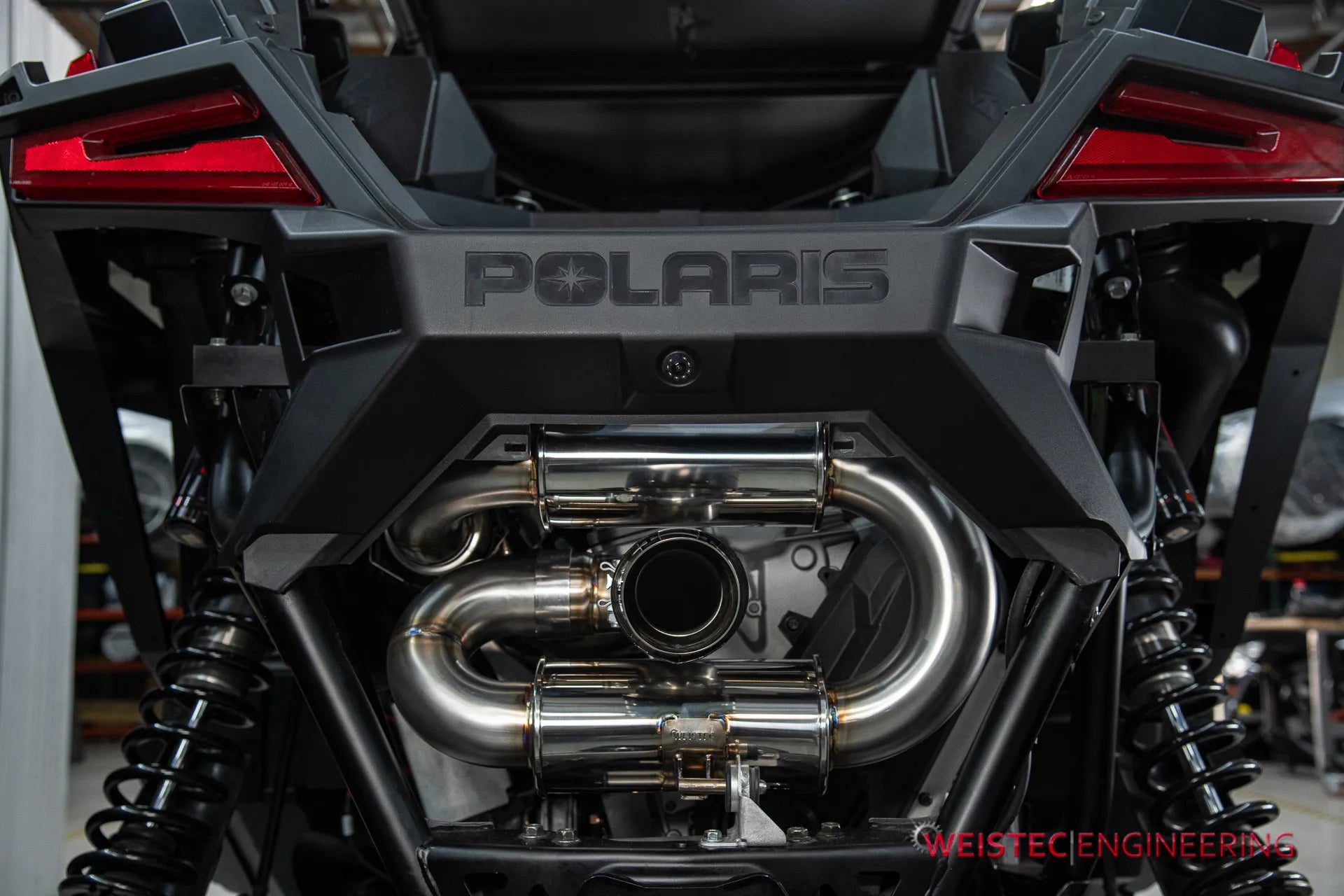

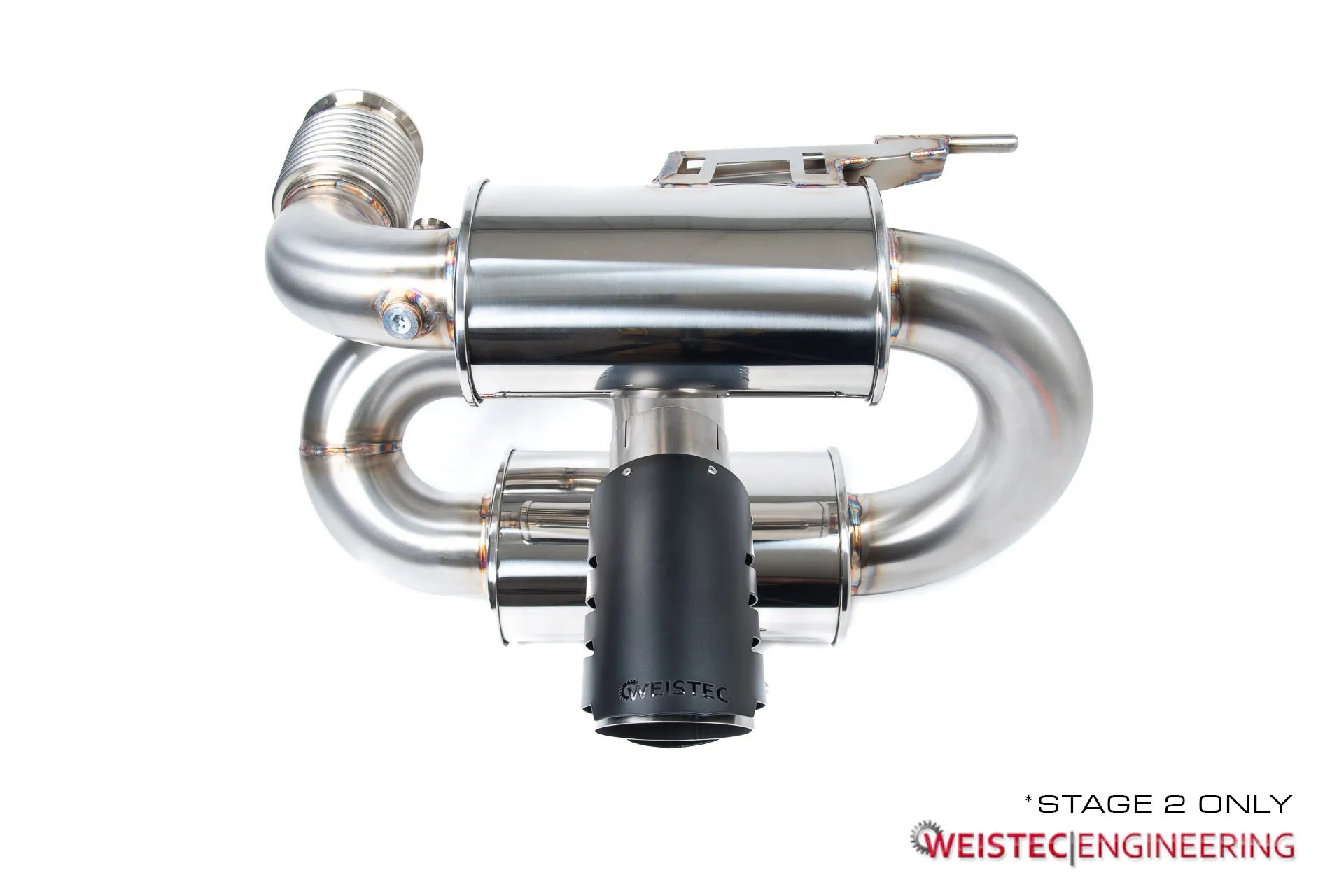

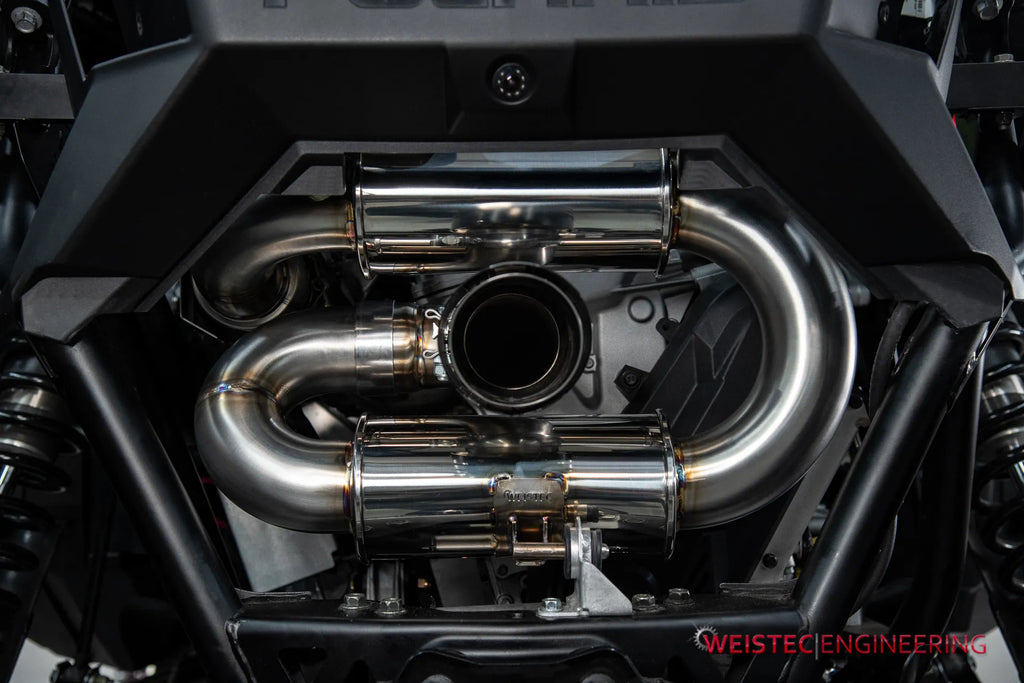

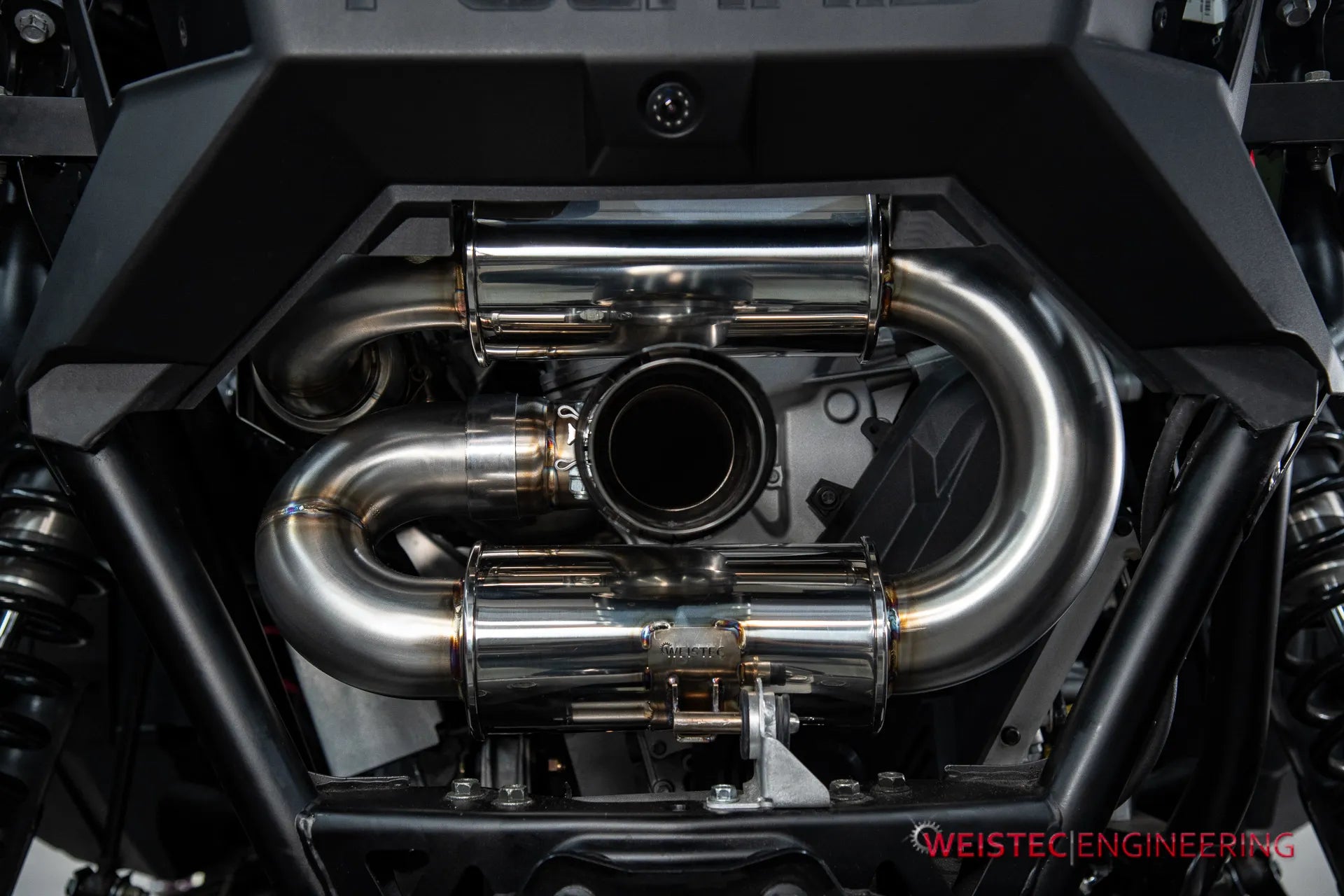

Stage 2 includes Weistec Muffler

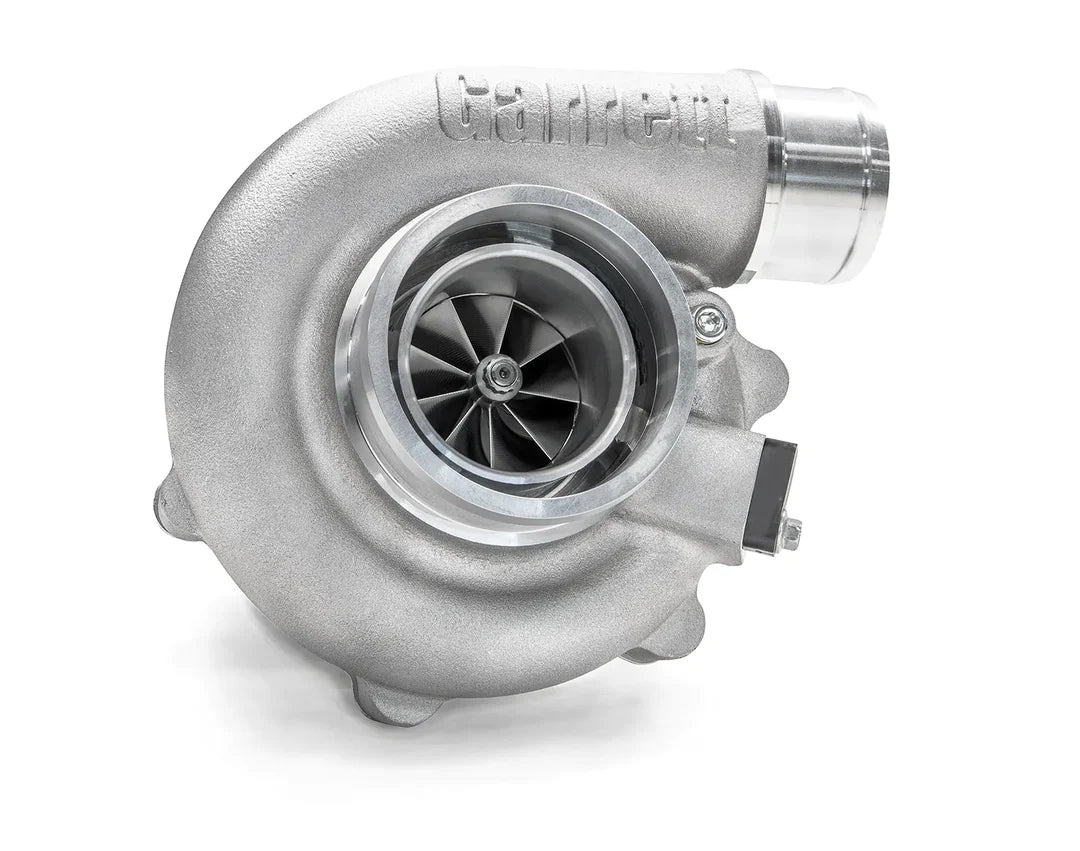

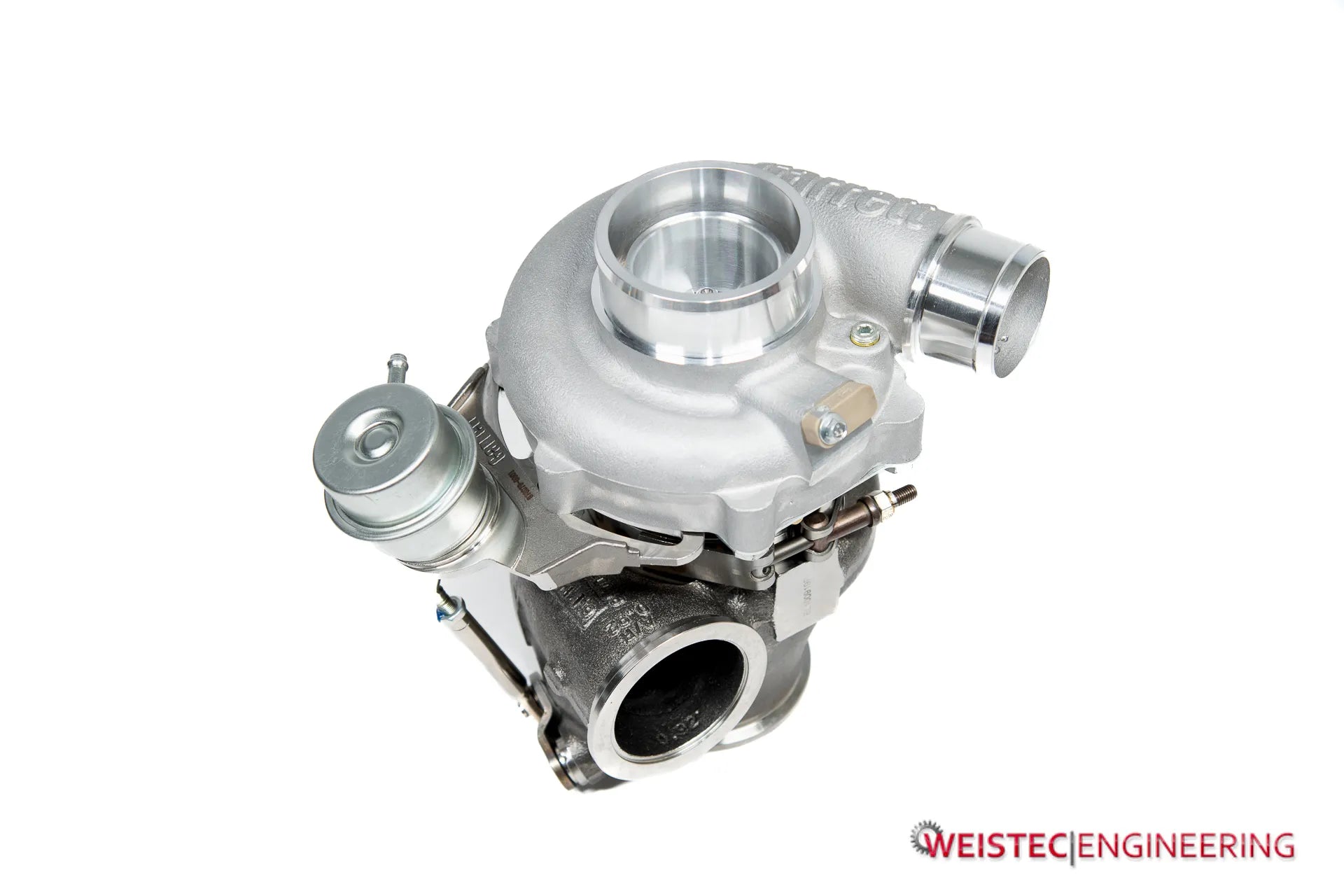

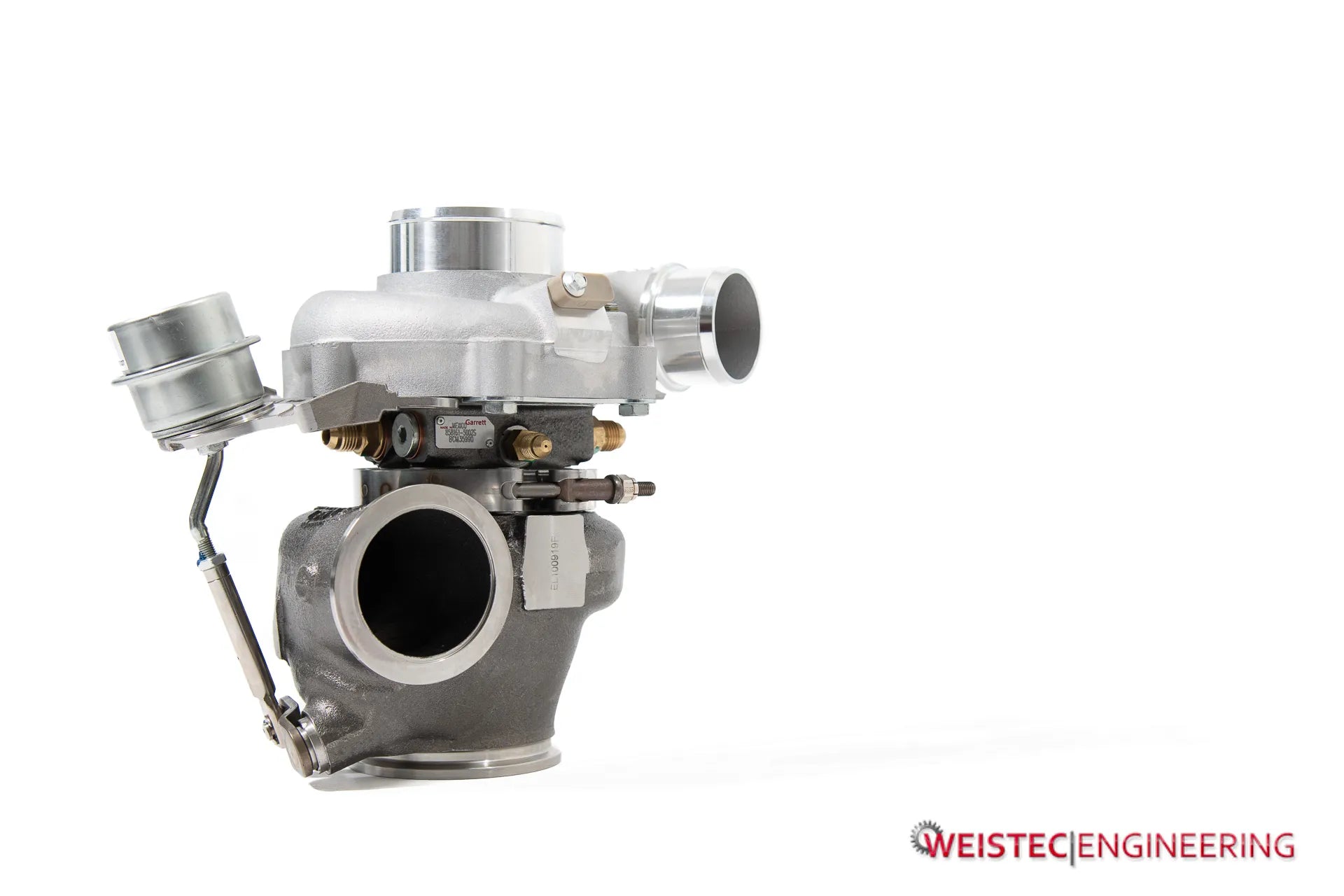

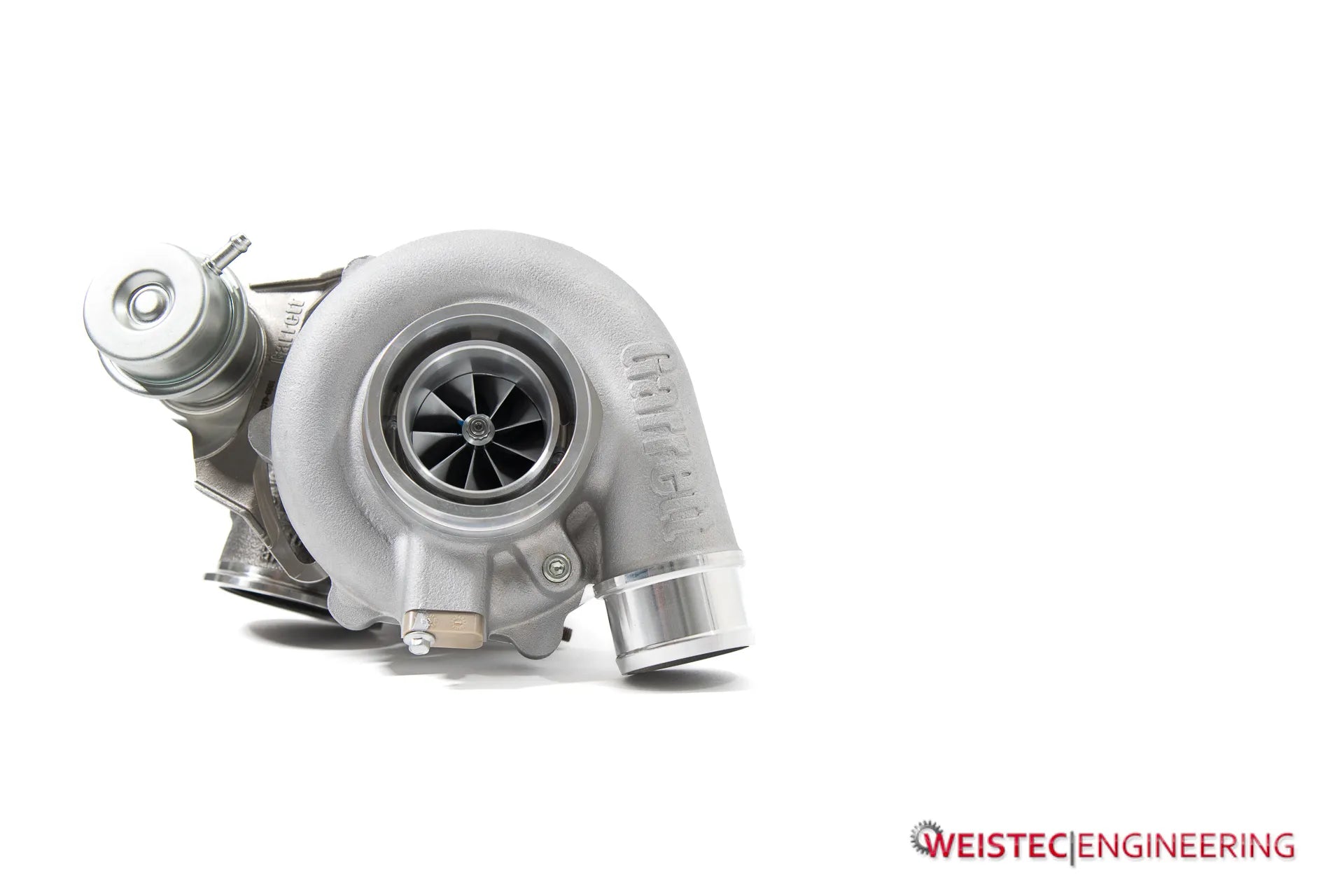

Garrett G25-550 Turbocharger
Stainless steel Weistec cast manifold
Weistec downpipe constructed of 304 SS material
Set of high flow ethanol safe injectors included
Plug and play adapters are included to avoid any modifications of the fuel injector harness
Baseline ECU tune is included
V-band connection on the manifold for leak-free mating with the turbo

V.2 Updates

Battle at Soggy Lake Bed

Offroading Demo

Install Video

Note: This item is considered special order. Due to high demand, please contact us for current availability and lead times. (See Terms and Conditions)

Vehicle fitment

2022-2024 Polaris RZR Pro R 4 Premium Base
2022-2024 Polaris RZR Pro R Premium Base
2022-2025 Polaris RZR Pro R 4 Ultimate Base
2022-2025 Polaris RZR Pro R Ultimate Base
2022 Polaris RZR Pro R 4 Sport Base
2022 Polaris RZR Pro R 4 Ultimate Launch Edition Base
2022 Polaris RZR Pro R Sport Base
2022 Polaris RZR Pro R Ultimate Launch Edition Base
2023 Polaris RZR Pro R 4 Troy Lee Designs Edition
2023 Polaris RZR Pro R Troy Lee Designs Edition
2025 Polaris RZR Pro R 4 Sport Base
2025 Polaris RZR Pro R Sport Base

Weistec part number: 01-004-02435-9
